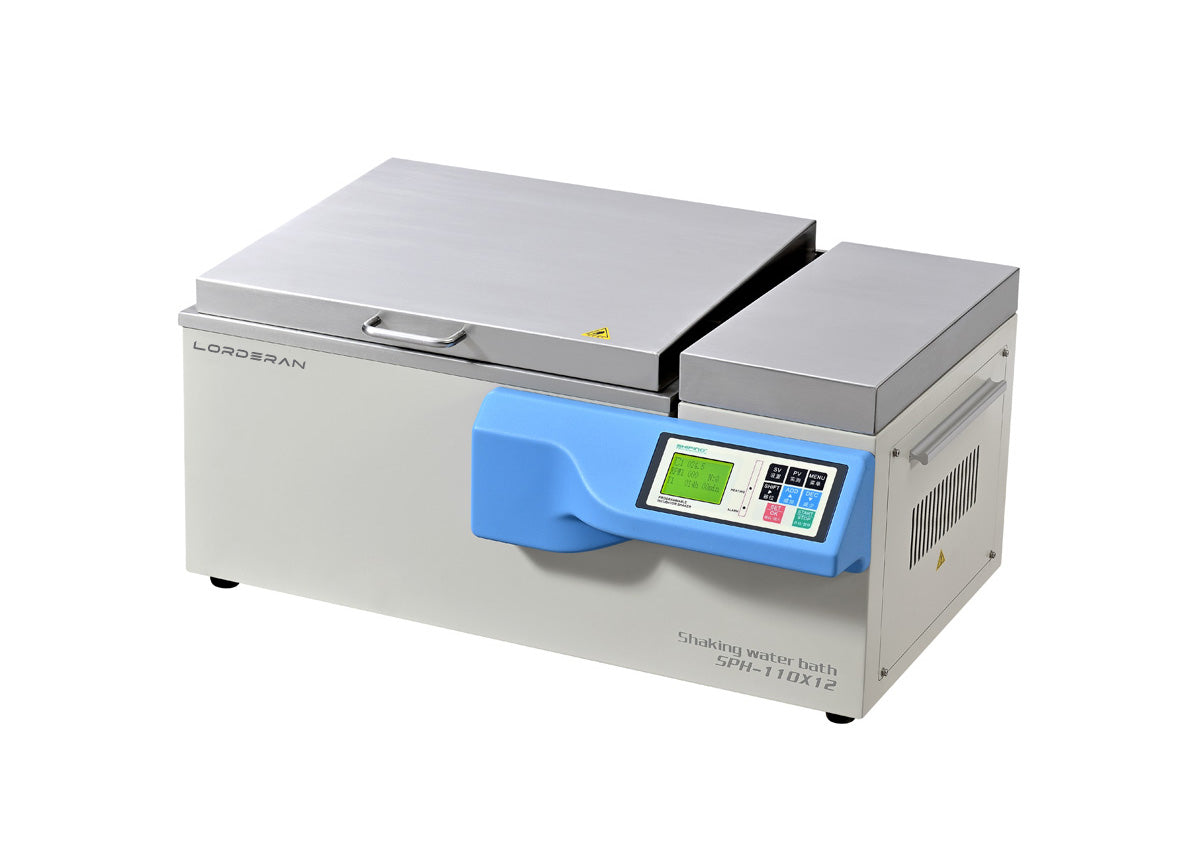

LORDERAN shaking water bath, model 110X12

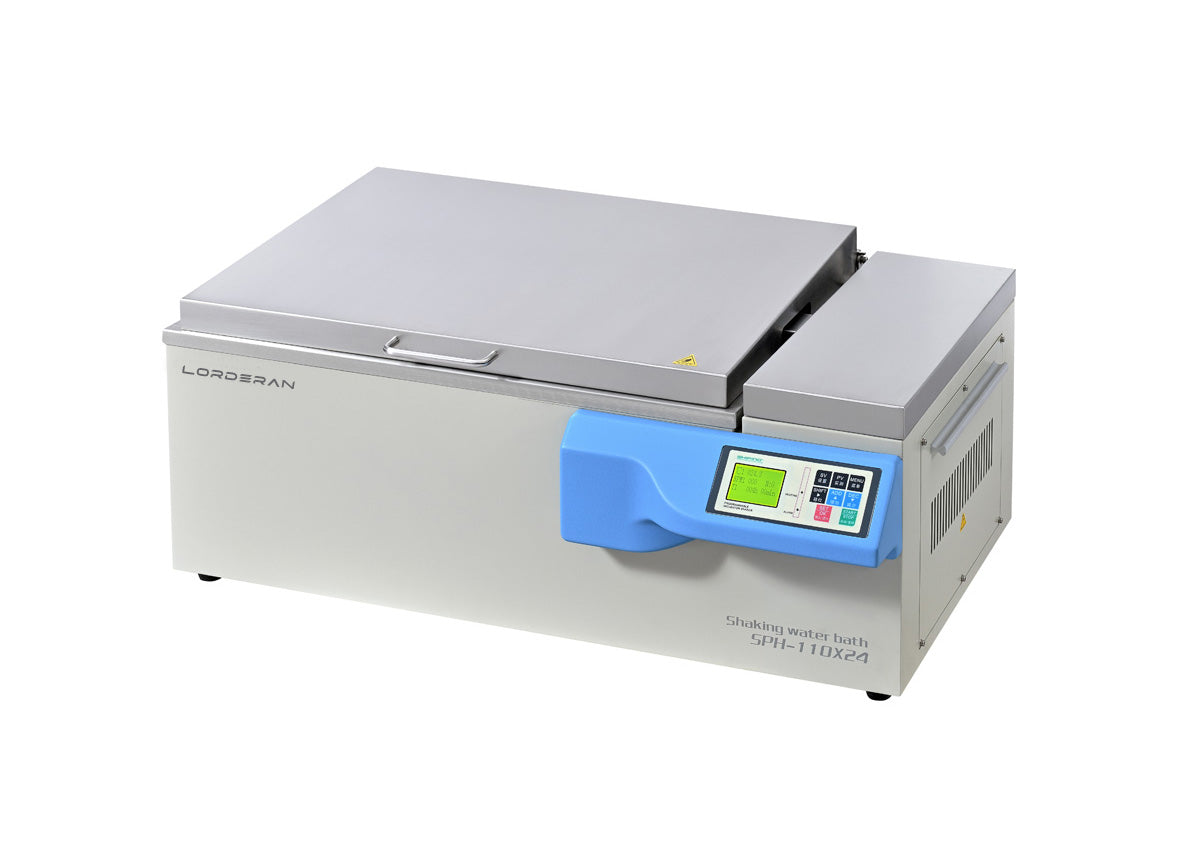

Shaking water bath, model 110X24

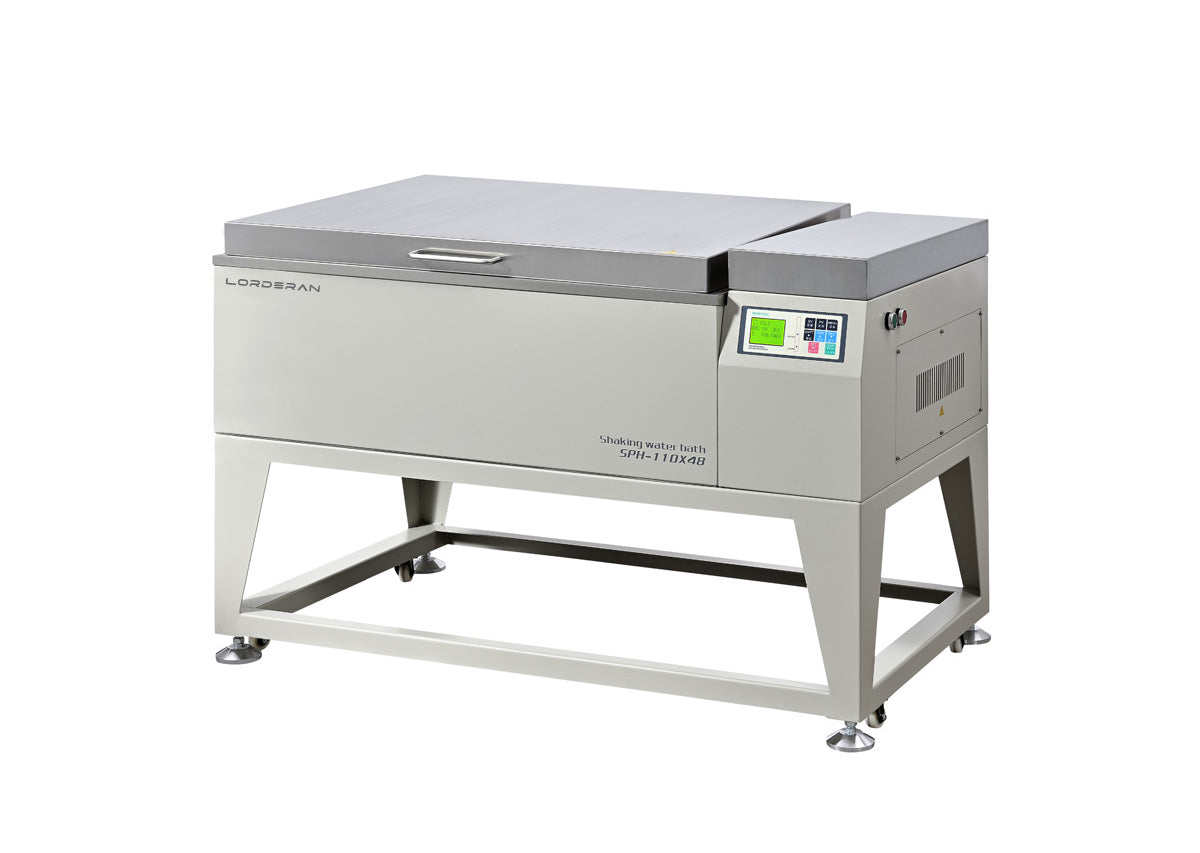

Shaking water bath, model 110X48

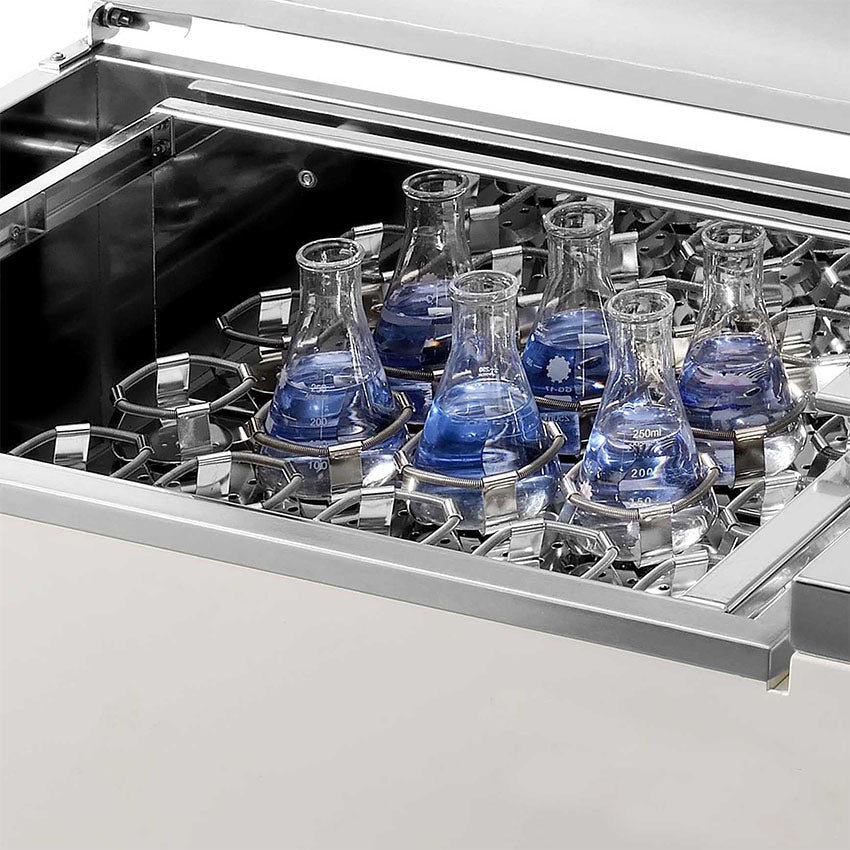

Shaking water bath – detail view
1 / 4
Lab Shaker

LORDERAN Shaking Water Bath for Continuous Operation, 0-200 rpm Ultra-Low Noise Shaker Water Bath with Balanced Drive

SKU
110X12
Availability
In stock
Brand
LORDERAN
Model · 110X12

A heated water bath with a reciprocating shaker built in, for samples that need gentle, even agitation while they incubate. Water carries heat into every flask far faster than air, so the bath holds its set point to ±0.1 °C from 5 °C above ambient up to 99.9 °C, while a balanced track drive moves the plate back and forth from 20 to 200 rpm.

46 / 82 / 170 Lthree bath sizes
99.9 °Cmaximum temperature
±0.1 °Caccuracy and uniformity
20–200rpm, ±1 rpm
316Lstainless steel liner
Ambient + 5 °C99.9 °C

Temperature control starts 5 °C above ambient, so the lowest set point depends on the room.

Enzyme reactionsHybridisationBacterial and cell cultureDissolution and extractionFood and pharma QC

Water heats every flask evenly

In air, the flasks nearest the heater warm first. In water, every flask sits in the same bath, so a full load reaches temperature together and stays there. The suspension-buffered drive moves the platform in a straight 25 mm stroke, with low noise and no wobble.

The plate travels back and forth in a 25 mm reciprocating stroke.

25 mmstroke length
±1 rpmspeed accuracy
60 Winverter motor
8 curvesprogrammable
  • Suspension-buffered, anti-shake transmission for quiet, stable running.
  • Acceleration control starts the shaker slowly and speeds up smoothly to protect samples.
  • Maintenance-free inverter motor with low vibration and a wide speed range.
  • Run resumes the original program automatically after a power cut.

Three sizes, one platform design

Every model uses the same drive, controller and 316L stainless steel bath. Choose by plate area and flask count.

110X48780 × 590 mm110X24590 × 390 mm110X12430 × 320 mm

Shaking plate sizes drawn to scale.

Model 110X12 110X24 110X48
Volume 46L 82L 170L
Shaking plate 430×320 mm 590×390 mm 780×590 mm
250 ml flasks 14 28 50
500 ml flasks 9 16 30
1000 ml flasks 6 9 21
Power 1900W 2300W 4500W

Maximum flask counts per size, as listed in the specifications.

Protected from the controller to the plate

A scanning microprocessor watches temperature and speed continuously, and independent alarms cut power if either runs away.

Control

  • PID microprocessor with environment scanning
  • Large backlit LCD with set and measured values
  • Programs with repetition, steps and eight curves
  • Timer from 0 to 999 h 59 min, or continuous
  • Parameter memory avoids re-entering settings

Protection

  • Over-temperature sound and light alarm
  • Power cut automatically if the motor overheats or temperature runs away
  • Independent excess-speed alarm and watchdog timer
  • Independent leakage and surge protection
  • Operating parameters can be encrypted and locked

Build

  • 316L stainless steel liner
  • Electropolished stainless steel rocking plate, springs and flask clamps
  • Electrostatic-sprayed body with large tempered glass window
  • Streamlined cabinet design
  • One-key reset and clock display

Specifications

Models 110X12, 110X24 and 110X48.

Differs between models

Model 110X12 110X24 110X48
Control and drive
Control Mode PID (Microcomputer scans the micro-processing chip)
Display Mode LCD
Shaking Mode Reciprocating
Drive Mode Track balanced-drive type
Speed Range 20~200rpm
Speed Accuracy ±1 rpm
Stroke Length 25mm
Programming Function Programing of repetition, steps and eight curves settings
Timing Range 0 – 999h59mins / continuous
Motor 60W Inverter motor
Temperature
Temperature Control Range Ambient temperature 5°C-99.9°C
Temperature Accuracy ±0.1°C (Constant temperature)
Uniformity ±0.1°C
Safety
Safety Functions Speed storage, automatic shutdown, temperature and speed correction, monitoring timer, clock display, call recovery, parameter memory, parameter encryption, one-key reset
Additional Functions Watchdog timer, independent excess speed sound/light alarm, independent electric leakage, leakage/surge protection device
Capacity
Shaking Plate Quantity 1
Maximum Capacity 250ml×14 or 500ml×9 or 1000ml×6 250ml×28 or 500ml×16 or 1000ml×9 250ml×50 or 500ml×30 or 1000ml×21
Volume 46L 82L 170L
Size of Shaking Plate 430×320 mm 590×390 mm 780×590 mm
Shaking Plate 430×320×60 mm 590×390×80 mm 780×590×80 mm
Dimensions, weight and power
Material 316L stainless steel
Chamber Size 510×380×240 mm 700×455×260 mm 940×660×275 mm
External Size 760×508×388 mm 942×580×405 mm 1240×700×830 mm
Net Weight 56kg 68kg 133kg
Power 1900W 2300W 4500W
Voltage AC 220V±10%, 50/60 Hz; 110V, 60Hz optional (External transformer for model 110X12, 110X24).
