LORDERAN Vertical Laminar Flow Hood, ISO Level 5, Touch Screen Microcomputer Controlled 99.995% HEPA Clean Bench for Laboratory, Cell Culture
- SKU
- CB-V1100-110
- Availability
- In stock
- Brand
- Lorderan
LORDERAN Vertical Laminar Flow Hood, ISO Level 5, Touch Screen Microcomputer Controlled 99.995% HEPA Clean Bench for Laboratory, Cell Culture
₱228,100
A floor-standing vertical laminar flow clean bench with an ISO Class 5 work zone, an H14 HEPA filter and a 7-inch color touch screen. Three widths from 1100 to 1500 mm suit one or two operators. Each cabinet comes with a base stand and a 3-year warranty.
A clean room the size of a bench

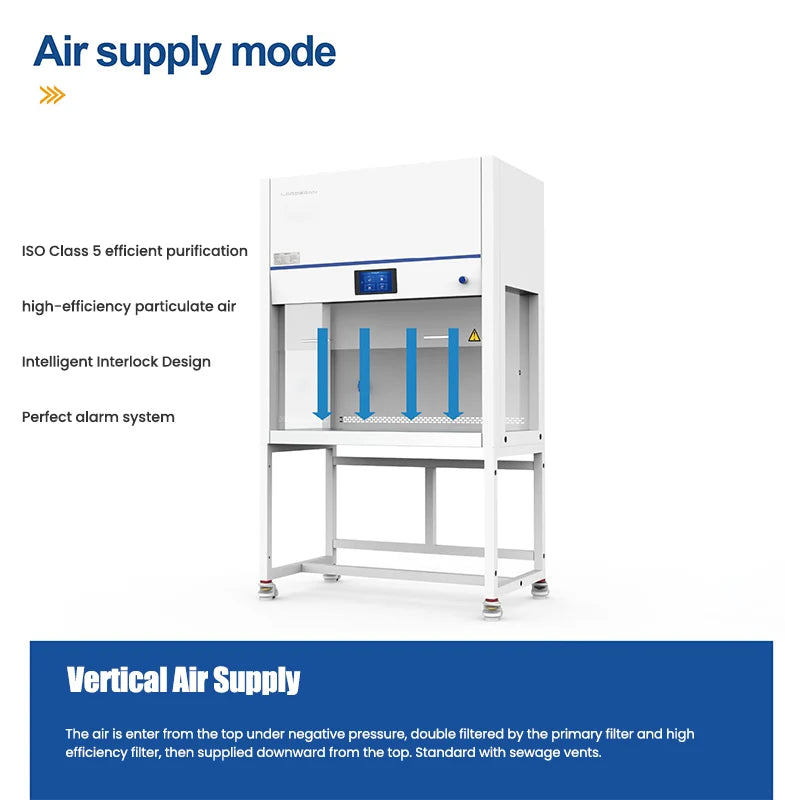

Air is drawn through the initial-effect filter and the H14 HEPA filter, then flows vertically across the work surface. The left, right, rear and bottom are kept at positive pressure, so room air cannot leak into the work zone.
Section through the cabinet with positive-pressure surround.

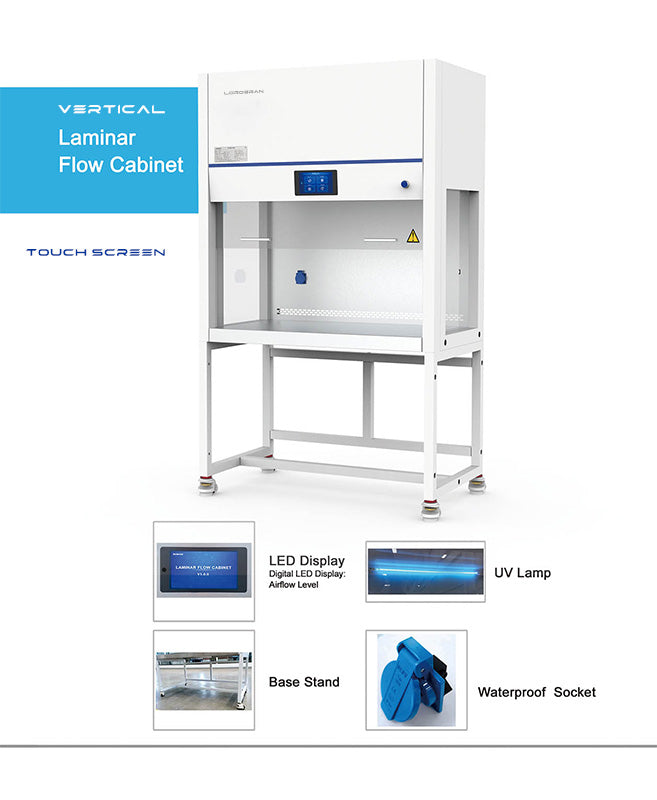

- 7-inch color touch screen with real-time running status.
- Fan and front window interlock, plus UV lamp, front window and lamp interlock.
- Alarms for window height, filter over-pressure and filter replacement.
- Scheduled timing and one-key disinfection.
Three widths, one standard of clean
All three models share the 610 × 650 mm depth and height, airflow, filtration and controls. The 1300 and 1500 fit two operators.
External width and height drawn to scale.
ISO 14644-1 Class 5 allows no more than 3,520 particles of 0.5 μm or larger per cubic metre of air.
The most penetrating particle size is captured at least 99.995% of the time.
Designed around the operator
Clear glass on three sides, a counterweighted window and a stand with built-in casters make the bench easy to live with.
Control
- 7-inch color touch screen
- Real-time running status
- Appointment (scheduled) timing
- One-key disinfection
- Window and filter monitoring
Safety
- Fan and front window interlock
- UV lamp, front window and lamp interlock
- Front window height alarm
- Filter over-pressure alarm
- Filter replacement alarm
Build
- Cold-rolled steel body, 304 stainless steel work surface
- Positive-pressure surround on four sides
- 5 mm tempered front and side glass
- Hidden counterweight, manual front window
- Integrated base stand and casters
Specifications

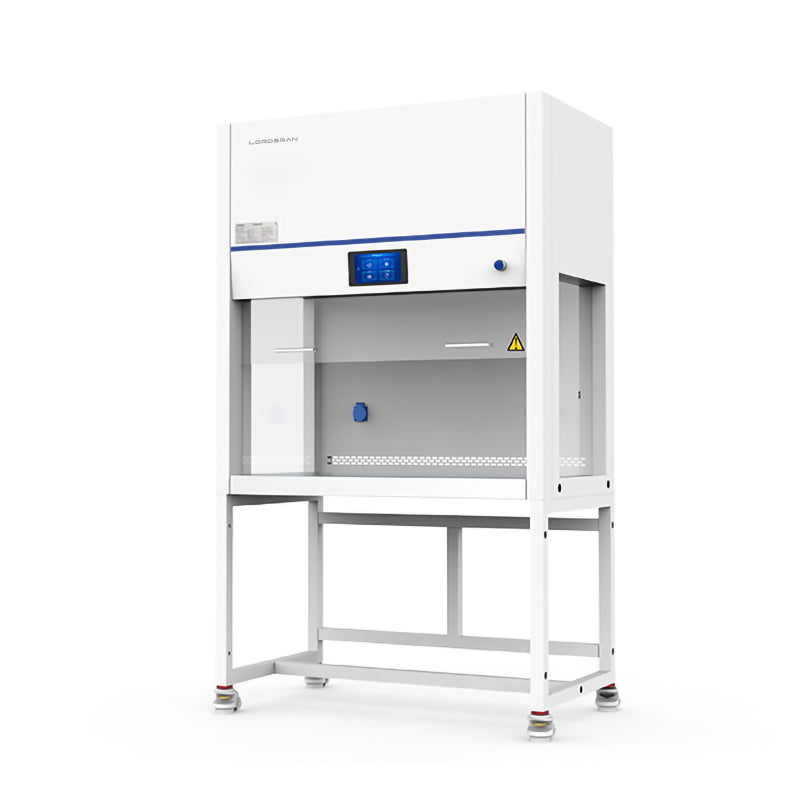

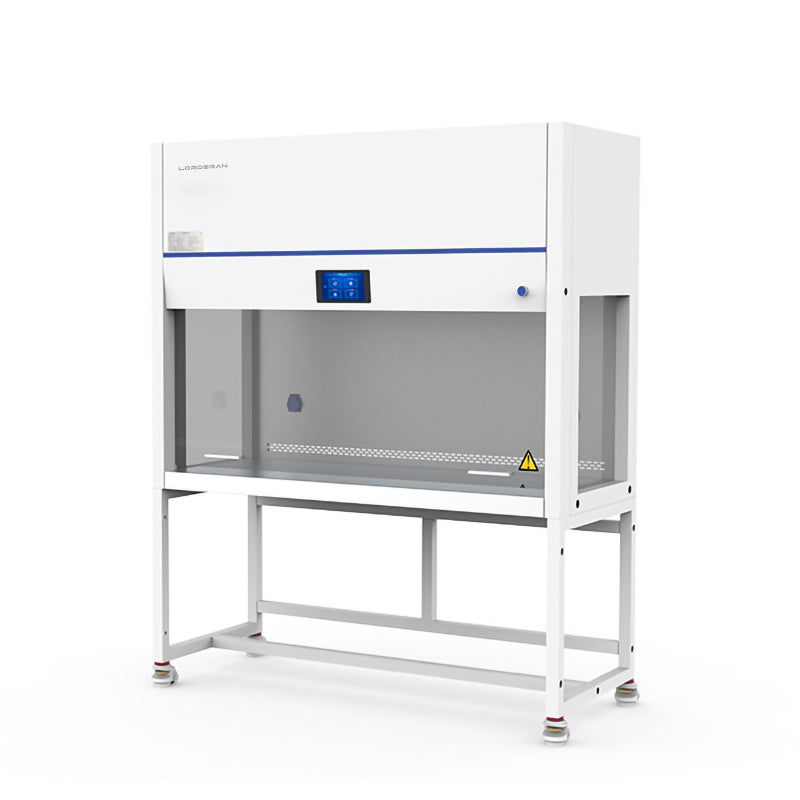

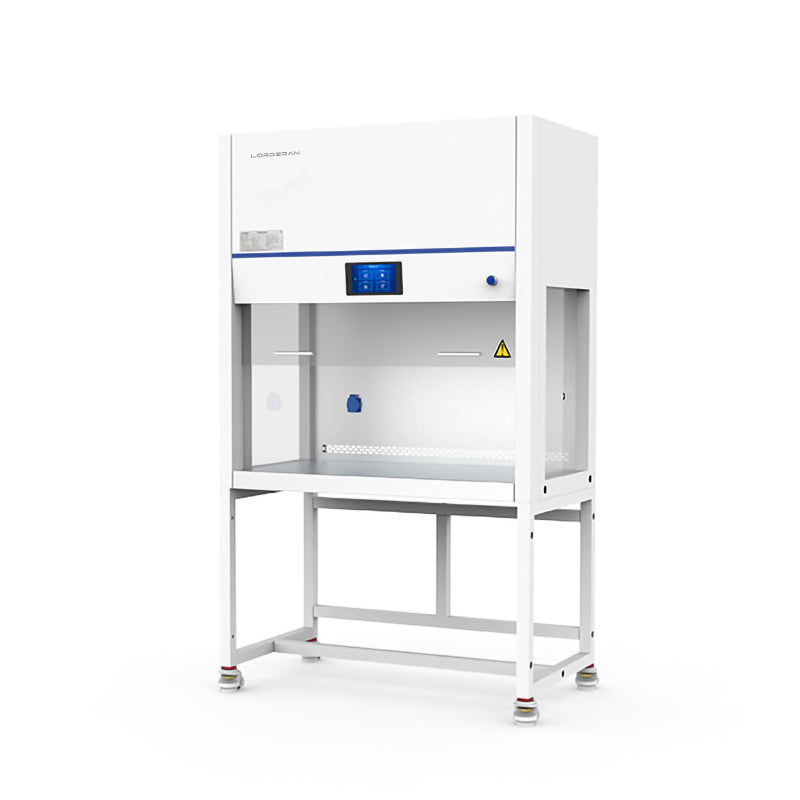

Models CB-V1100, CB-V1300 and CB-V1500, each available in 110 V and 220 V versions.
Differs between models
| Model | CB-V1100 | CB-V1300 | CB-V1500 |
|---|---|---|---|
| Dimensions | |||
| External Size (W*D*H) | 1100*630*1860mm | 1300*630*1860mm | 1500*630*1860mm |
| Internal Size (W*D*H) | 1000*610*650mm | 1200*610*650mm | 1400*610*650mm |
| Front Window Safety Height | 200mm | ||
| Max Opening | 350mm | ||
| Work Surface Height | 750mm | ||
| Net Weight | 190kg | 225kg | 235kg |
| Gross Weight | 248kg | 289kg | 308kg |
| Package Size (W*D*H) | 1250*840*1420mm | 1450*840*1420mm | 1650*840*1420mm |
| Airflow and cleanliness | |||
| Flow Mode | Vertical Flow | ||
| Airflow Velocity | 0.2 m/s～0.45 m/s | ||
| Clean Grade | ISO Level 5 (100 levels) | ||
| Filtration Efficiency | HEPA (H14) high efficiency filter, filtration efficiency for 0.3μm particle≥99.995% | ||
| Safety | Colonies Number ≤ 0.5CFU/30min | ||
| Performance | |||
| Number of Users | Single | 1~2 | 1~2 |
| Noise | ≤65dB(A) | ||
| Lighting | ≥300lx | ||
| Vibration | ≤5μm(rms) | ||
| Rated Power | 700VA (including operating area socket load 500VA) | 700VA (including operating area socket load 500VA) | 850VA (including operating area socket load 500VA) |
| Accessories | |||
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, Waterproof socket*2 | ||
| Optional Accessory | Armrest*2 | ||
