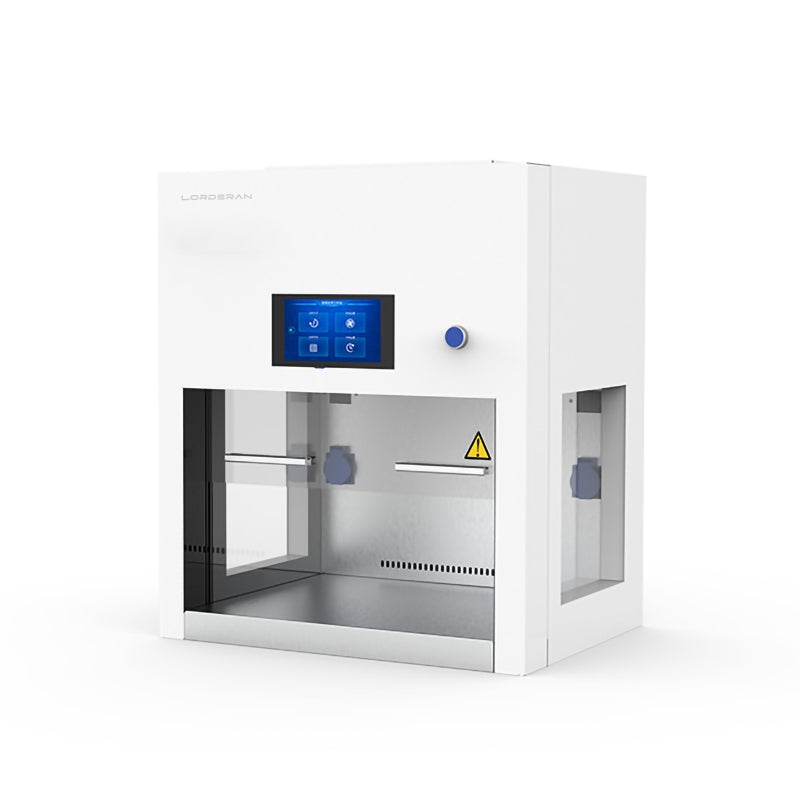

LORDERAN Benchtop Small Vertical Laminar Flow Cabinet with Touch Screen, Compact Laboratory Clean Bench, HEPA Filtered
- SKU
- V600-1
- Availability
- In stock
- Brand
- Lorderan
LORDERAN Benchtop Small Vertical Laminar Flow Cabinet with Touch Screen, Compact Laboratory Clean Bench, HEPA Filtered
$3,162
A compact benchtop clean bench that gives a single user an ISO Class 5 work zone in a 600 mm footprint. Room air passes a washable pre-filter and an H14 HEPA filter, then falls vertically over the work surface at 0.2–0.45 m/s and leaves through the front, carrying particles away from the sample. A 7-inch color touch screen runs the whole cabinet.
Clean air that falls straight down
A fan draws room air through the pre-filter and pushes it through the HEPA filter above the work zone. The clean air moves down in parallel streams, so particles shed by hands or tools are carried away instead of drifting onto the sample.
Section through the cabinet. Four sides are kept at positive pressure.
- Positive-pressure surround on the left, right, rear and bottom sides.
- Fan and front window interlock, plus UV lamp, front window and lamp interlock.
- Alarms for front window out of set height, filter over-pressure and filter replacement.
- One-key disinfection and scheduled timing from the touch screen.
ISO Class 5 on a benchtop
The V600 brings the clean grade of a full-size clean bench to a single workstation, with toughened glass on three sides for a clear view.
ISO 14644-1 Class 5 allows no more than 3,520 particles of 0.5 μm or larger per cubic metre of air.
The most penetrating particle size is captured at least 99.995% of the time.
Hidden counterweight keeps the manual window where you set it.
Small footprint, full feature set
Everything a full-size clean bench offers, sized for one person and a crowded bench.
Control
- 7-inch color touch screen with live running status
- Appointment (scheduled) timing
- One-key disinfection
- Front window height monitoring
- Filter status monitoring
Safety
- Fan and front window interlock
- UV lamp, front window and lamp interlock
- Front window height alarm
- Filter over-pressure alarm
- Filter replacement alarm
Build
- Vertical-surface cabinet design
- Cold-rolled steel body
- 304 stainless steel work surface
- 5 mm tempered front and side glass
- Initial-effect pre-filter
Specifications
Model BKCB-V600, available in 110 V and 220 V versions.
| Model | BKCB-V600 |
|---|---|
| Dimensions | |
| External Size (W*D*H) | 600*460*700mm |
| Internal Size (W*D*H) | 505*345*375mm |
| Front Window Safety Height | 200mm |
| Max Opening | 240mm |
| Net Weight | 50kg |
| Gross Weight | 62kg |
| Package Size (W*D*H) | 740*600*860mm |
| Airflow and cleanliness | |
| Flow Mode | Vertical Flow |
| Airflow Velocity | 0.2 m/s～0.45 m/s |
| Clean Grade | ISO Level 5 (100 levels) |
| Filtration Efficiency | HEPA (H14) high efficiency filter, filtration efficiency for 0.3μm particle≥99.995% |
| Safety | Colonies Number ≤ 0.5CFU/30min |
| Performance | |
| Number of Users | Single |
| Noise | ≤65dB(A) |
| Lighting | ≥300lx |
| Vibration | ≤5μm(rms) |
| Rated Power | 650VA (including operating area socket load 500VA) |
| Accessories | |
| Standard Accessory | LED lamp*2, UV lamp*2, Waterproof socket*2 |
