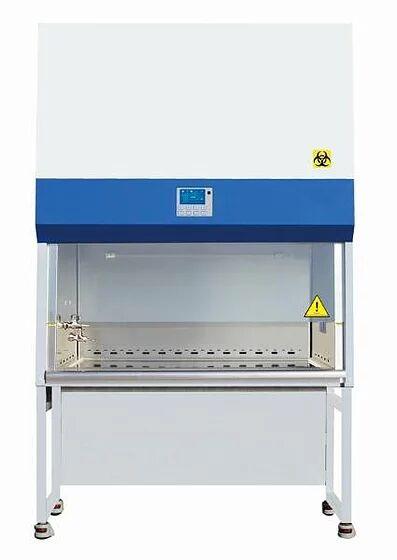

EN12469 Biological Safety Cabinet


EN12469 Biological Safety Cabinet Support Three protection: operator, sample and environment.

Low noise level.

Ergonomically-designed raised arm rest helps prevent grille blocking and create a comfortable working posture.

Airflow sensor to alert the user if airflow is sufficient for greater safety.

Alarm for unsafe sash conditions.

Airflow system: 70% air recirculation, 30% air exhaust.

Internal Size (W*D*H) :
Power :
customers are viewing this product

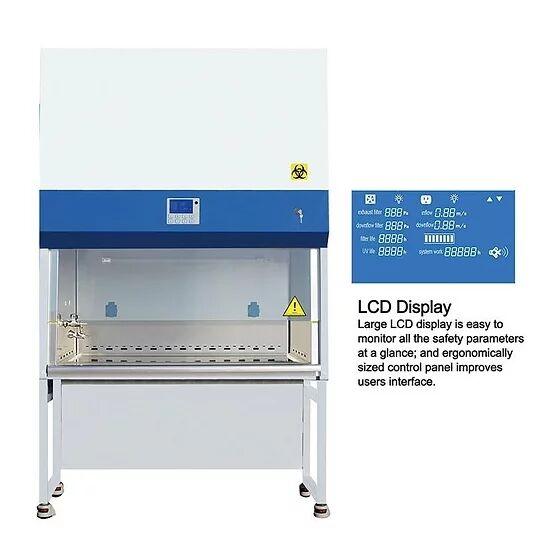

  1. Large LCD display, all information displayed.
  2. Automatic air speed adjustable with filter block.
  3. With memory function in case of power-failure.

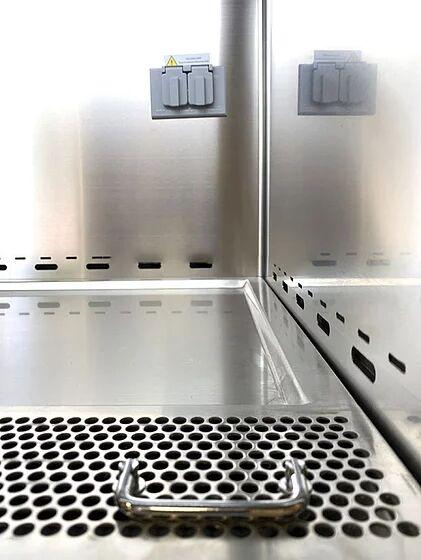

  4. Side & back wall is made up of single piece stainless steel.
  5. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
  6. Front 10°slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
Model BSC-3FA2 (3') BSC-4FA2(4')
External Size(W*D*H) 1087*775*2265 mm 1383*775*2295 mm
Internal Size(W*D*H) 910*600*660 mm 1210*600*660 mm
Work Surface Height 750 mm
Max Opening 520 mm (21’’) 550 mm (22’’)
Tested Opening Safety height 200mm (8’’)
Airflow Volume(Inflow) 348m3/h(205cfm) 462m3/h(272cfm)
Airflow Volume(Down flow) 65%: 649m3/h(382cfm) 65%: 863m3/h(507cfm)
Airflow Volume(Exhaust) 35%: 348m3/h(205cfm) 35%: 462m3/h(272cfm)
Front Window Manual. Two-layer laminated toughened glass ≥5mm. Anti UV
HEPA Filter Two, 99.999% efficiency at 0.3um, filter life indicator
Filter Guard Type Aluminum alloy frame
Noise NSF 49≤61 dB/EN 12469≤58 dB
Illumination ≥1000Lux
Display LCD Display
Waterproof Socket 2, Total consumption: ≤500W
Tap Water tap*1, Gas tap *1
Ground Resistance ≤ 0.10Ω
Power Supply AC230V, 50Hz
Consumption ≤500W ≤600W
Alarm Abnormal airflow velocity; Filter replacement; Front window at unsafe height
AC Motor One ECM motor, 230V acceptable, Speed adjustable,
  high efficiency and low power consumption
Material Working area: 304stainless steel
  Frame and decorative plate: cold-rolled steel with anti-bacteria power coating
UV Lamp   20W 30W
  Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Fluorescent Lamp 12W*2 14W*2
Standard Accessory Fluorescent lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, stainless Steel I.V. bar with 10 hooks.
Optional Accessory Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, Remote control, Electric height adjustable base stand, Motorized front window
Gross Weight 270kg 334kg
Package Size (W*D*H) 1220*1000*1840 mm 1540*1080*1900 mm

What are the suitable applications for Class II Biosafety Cabinet?

Handling of low to moderate risk biological agents -Applicable for handling pathogens under Risk Groups 1,2, and 3

What type of protection does Class II BSC offer?

Class II Biosafety Cabinets are open-fronted which protect the laboratory workers and the environment from harmful biological agents. Class II BSCs also prevent biological materials (i.e cell cultures, microbiological stocks) inside it from being contaminated.

Can I handle body fluids such as blood, serum, and urine samples in a class II BSC?

Yes, Class II BSC is the most common type used for handling blood, serum, and urine samples. The Class II BSC provides a sterile environment for the samples and reduces the risk of cross-contamination while protecting the operators from the biohazards.

Can we use chemicals in a Class II BSC?

Some microbiological processes require small amounts of chemicals. This type of handling is allowed as biological safety cabinets may be upgraded to have a thimble ducting or carbon filter to accommodate small volumes of chemicals. However, a high concentration of corrosive acids is not allowed as it may damage the ULPA filters and cause corrosion.

Can a microscope be used in a Class II Biological Safety Cabinet?

Yes. For additional convenience, Class II BSCs can be customized to have a microscope pouch. Please contact your local Lorderan representative for more information.

What is the shelf life of HEPA or ULPA filters?

The estimated shelf life of HEPA or ULPA filters is up to 10 years when stored properly.

How to store HEPA or ULPA filters properly?

Filters should be kept in their original packaging and should not be exposed to dampness, excessive heat, cold or rapidly changing temperatures. These filters can tolerate up to 95% humidity; anything higher can cause the filter media to block and fail.
