Beyond The Limits of Ordinary Testing
Humidity Limit
Temperature Accuracy
Easy Operation
Experience Blazing-fast Temperature Cycling
Temperature Cycling
Advanced temperature control system ensures rapid and precise temperature ramping. 5℃/10℃/15℃/min optional.
Cooling System
Powerful compression cooling for rapid temperature cycling.

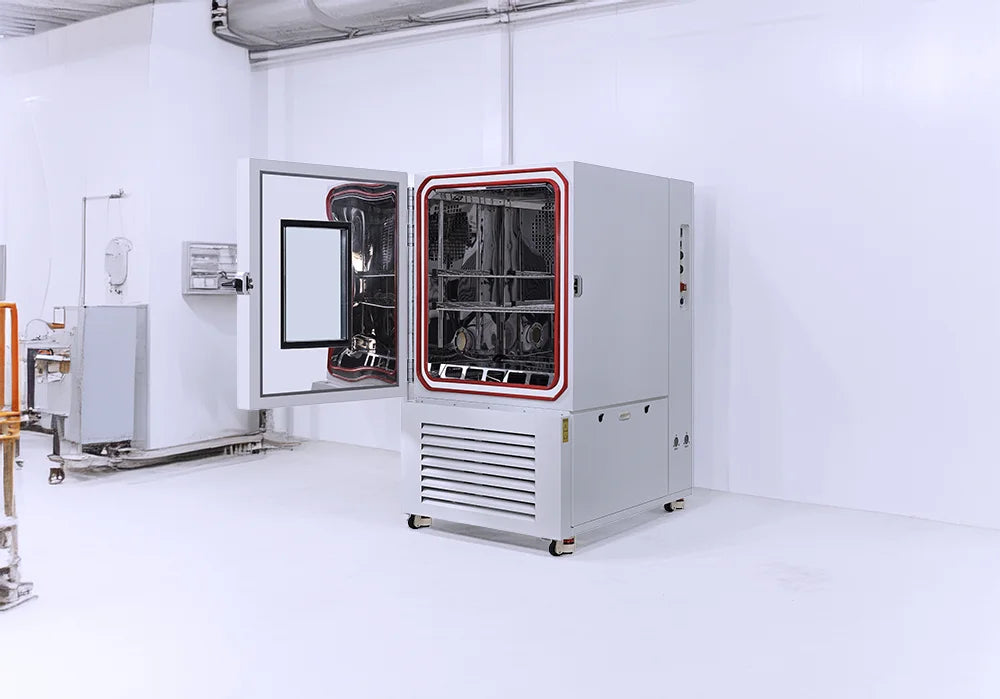

Integrated Chamber
Seamlessly integrated chamber design for optimal performance and efficiency.
Continuous Testing
Provide reliable performance for weeks on end, making it the ideal choice for long-term testing.
Temperature Cycling
Advanced temperature control system ensures rapid and precise temperature ramping. 5℃/10℃/15℃/min optional.
Cooling System
Powerful compression cooling for rapid temperature cycling.
Integrated Chamber
Seamlessly integrated chamber design for optimal performance and efficiency.
Continuous Testing
Provide reliable performance for weeks on end, making it the ideal choice for long-term testing.
Rapid Temperature Ramp Rates
Item Heading
Three years warranty
set the temperature variable rate of the different stress screening
Performs fast temperature change (ESS), condensation test, high temperature and humidity test, temperature and humidity cycling test, etc.
Meet the requirements of stress screening test for electronic equipment
Carry out the two test methods, temperature test and average temperature test
Meet the requirements of stress screening test for electronic equipment MIL-STD-2164, MIL-344A-4-16, MIL-2134A-19, NABMAT-9492, GJB-1032-90, GJB/Z34-5.1.6, IPC-9701, etc.
Remote control via PC and phone, Come with remote assistance feature.
Complete real-time test curve analysis shows that no time limit
Simulate Harsh Environments
Rapid temp. changing (humidity) test chamber also known as Environmental Stress Screening (ESS), AST (Accelerated Stress Testing), HALT (Highly Accelerated Stress Test), HASS (Highly Accelerated Stress Screening) or Burn-in test.
Accelerate Product Reliability
Rapid temperature cycling chambers subject your products to extreme temperature fluctuations, ensuring they can withstand real-world conditions.
Crafted with Meticulous Attention to Detail
Every aspect of our chambers, from the temperature control system to the insulation, is designed to deliver optimal performance and reliability.
Specifications
100L
250L
500L
1000L
SKU
KB6010
KB6025
KB6050
KB6100
Interior Size (W*D*H)
450*450*500mm
600*600*700mm
800*700*900mm
1000*1000*1000mm
Exterior Dimensions
800*1560*1600mm
950*2000*1760mm
1150*2300*1940mm
1300*2600*2050mm
Temperature range
-70~150℃
-70~150℃
-70~150℃
-70~150℃
Temp Adjustment Method
Balanced temperature and humidity adjustment method (BTHC) PID intelligent adjustment
PID intelligent adjustment
PID intelligent adjustment
PID intelligent adjustment
Humidity range
20～98％ RH
20～98％ RH
20～98％ RH
20～98％ RH
Temperature fluctuation
±0.5℃
±0.5℃
±0.5℃
±0.5℃
Humidity fluctuation
±2~3%RH
±2~3%RH
±2~3%RH
±2~3%RH
Temperature deviation
±1.0℃
±1.0℃
±1.0℃
±1.0℃
Humidity deviation
±2.0％RH(>75%): ±3.0％RH(≤75%)
±2.0％RH(>75%): ±3.0％RH(≤75%)
±2.0％RH(>75%): ±3.0％RH(≤75%)
±2.0％RH(>75%): ±3.0％RH(≤75%)
Heating-up time
Full range non-linear average 5/10/15℃/min, no load.
Full range non-linear average 5/10/15℃/min, no load.
Full range non-linear average 5/10/15℃/min, no load.
Full range non-linear average 5/10/15℃/min, no load.
Cooling down time
Full range non-linear average 5/10/15℃/min, no load.
Full range non-linear average 5/10/15℃/min, no load.
Full range non-linear average 5/10/15℃/min, no load.
+20℃～-40℃ ≤70min
Refrigeration method
Air cooled
Air cooled/Water cooled
Air cooled/Water cooled
Air cooled/Water cooled
Display
7.0 inch Touch Screen
7.0 inch Touch Screen
7.0 inch Touch Screen
7.0 inch Touch Screen
Power Supply
460V±10%, 50/60Hz
460V±10%, 50/60Hz
460V±10%, 50/60Hz
460V±10%, 50/60Hz
Power (5℃)
8kw
9.5kw
12kw
15kw
Power (10℃)
9.5kw
16kw
19kw
25kw
Power (15℃)
16kw
19.5kw
23kw
31kw
Inner Body Material
SUS304 mirror stainless steel plate
SUS304 mirror stainless steel plate
SUS304 mirror stainless steel plate
SUS304 mirror stainless steel plate
Insulation Material
Special ultra-fine glass wool + polyurethane foam for rapid temperature change test chamber
Special ultra-fine glass wool + polyurethane foam for rapid temperature change test chamber
Special ultra-fine glass wool + polyurethane foam for rapid temperature change test chamber
Special ultra-fine glass wool + polyurethane foam for rapid temperature change test chamber
Refrigeration Method
Mechanical binary refrigeration method
Mechanical binary refrigeration method
Mechanical binary refrigeration method
Mechanical binary refrigeration method
Refrigerant
R23, R404a
R23, R404a
R23, R404a
R23, R404a
Airflow Mode
Broadband forced air circulation (top out and bottom in)
Broadband forced air circulation (top out and bottom in)
Broadband forced air circulation (top out and bottom in)
Broadband forced air circulation (top out and bottom in)
Humidifier Device
Special stainless-steel humidifier
Special stainless-steel humidifier
Special stainless-steel humidifier
Special stainless-steel humidifier
100L
SKU
KB6010
Interior Size (W*D*H)
450*450*500mm
Exterior Dimensions
800*1560*1600mm
Temperature range
-70~150℃
Temp Adjustment Method
Balanced temperature and humidity adjustment method (BTHC) PID intelligent adjustment
Humidity range
20～98％ RH
Temperature fluctuation
±0.5℃
Humidity fluctuation
±2~3%RH
Temperature deviation
±1.0℃
Humidity deviation
±2.0％RH(>75%): ±3.0％RH(≤75%)
Heating-up time
Full range non-linear average 5/10/15℃/min, no load.
Cooling down time
Full range non-linear average 5/10/15℃/min, no load.
Refrigeration method
Air cooled
Display
7.0 inch Touch Screen
Power Supply
460V±10%, 50/60Hz
Power (5℃)
8kw
Power (10℃)
9.5kw
Power (15℃)
16kw
Inner Body Material
SUS304 mirror stainless steel plate
Insulation Material
Special ultra-fine glass wool + polyurethane foam for rapid temperature change test chamber
Refrigeration Method
Mechanical binary refrigeration method
Refrigerant
R23, R404a
Airflow Mode
Broadband forced air circulation (top out and bottom in)
Humidifier Device
Special stainless-steel humidifier
250L
SKU
KB6025
Interior Size (W*D*H)
600*600*700mm
Exterior Dimensions
950*2000*1760mm
Temperature range
-70~150℃
Temp Adjustment Method
PID intelligent adjustment
Humidity range
20～98％ RH
Temperature fluctuation
±0.5℃
Humidity fluctuation
±2~3%RH
Temperature deviation
±1.0℃
Humidity deviation
±2.0％RH(>75%): ±3.0％RH(≤75%)
Heating-up time
Full range non-linear average 5/10/15℃/min, no load.
Cooling down time
Full range non-linear average 5/10/15℃/min, no load.
Refrigeration method
Air cooled/Water cooled
Display
7.0 inch Touch Screen
Power Supply
460V±10%, 50/60Hz
Power (5℃)
9.5kw
Power (10℃)
16kw
Power (15℃)
19.5kw
Inner Body Material
SUS304 mirror stainless steel plate
Insulation Material
Special ultra-fine glass wool + polyurethane foam for rapid temperature change test chamber
Refrigeration Method
Mechanical binary refrigeration method
Refrigerant
R23, R404a
Airflow Mode
Broadband forced air circulation (top out and bottom in)
Humidifier Device
Special stainless-steel humidifier
500L
SKU
KB6050
Interior Size (W*D*H)
800*700*900mm
Exterior Dimensions
1150*2300*1940mm
Temperature range
-70~150℃
Temp Adjustment Method
PID intelligent adjustment
Humidity range
20～98％ RH
Temperature fluctuation
±0.5℃
Humidity fluctuation
±2~3%RH
Temperature deviation
±1.0℃
Humidity deviation
±2.0％RH(>75%): ±3.0％RH(≤75%)
Heating-up time
Full range non-linear average 5/10/15℃/min, no load.
Cooling down time
Full range non-linear average 5/10/15℃/min, no load.
Refrigeration method
Air cooled/Water cooled
Display
7.0 inch Touch Screen
Power Supply
460V±10%, 50/60Hz
Power (5℃)
12kw
Power (10℃)
19kw
Power (15℃)
23kw
Inner Body Material
SUS304 mirror stainless steel plate
Insulation Material
Special ultra-fine glass wool + polyurethane foam for rapid temperature change test chamber
Refrigeration Method
Mechanical binary refrigeration method
Refrigerant
R23, R404a
Airflow Mode
Broadband forced air circulation (top out and bottom in)
Humidifier Device
Special stainless-steel humidifier
1000L
SKU
KB6100
Interior Size (W*D*H)
1000*1000*1000mm
Exterior Dimensions
1300*2600*2050mm
Temperature range
-70~150℃
Temp Adjustment Method
PID intelligent adjustment
Humidity range
20～98％ RH
Temperature fluctuation
±0.5℃
Humidity fluctuation
±2~3%RH
Temperature deviation
±1.0℃
Humidity deviation
±2.0％RH(>75%): ±3.0％RH(≤75%)
Heating-up time
Full range non-linear average 5/10/15℃/min, no load.
Cooling down time
+20℃～-40℃ ≤70min
Refrigeration method
Air cooled/Water cooled
Display
7.0 inch Touch Screen
Power Supply
460V±10%, 50/60Hz
Power (5℃)
15kw
Power (10℃)
25kw
Power (15℃)
31kw
Inner Body Material
SUS304 mirror stainless steel plate
Insulation Material
Special ultra-fine glass wool + polyurethane foam for rapid temperature change test chamber
Refrigeration Method
Mechanical binary refrigeration method
Refrigerant
R23, R404a
Airflow Mode
Broadband forced air circulation (top out and bottom in)
Humidifier Device
Special stainless-steel humidifier
