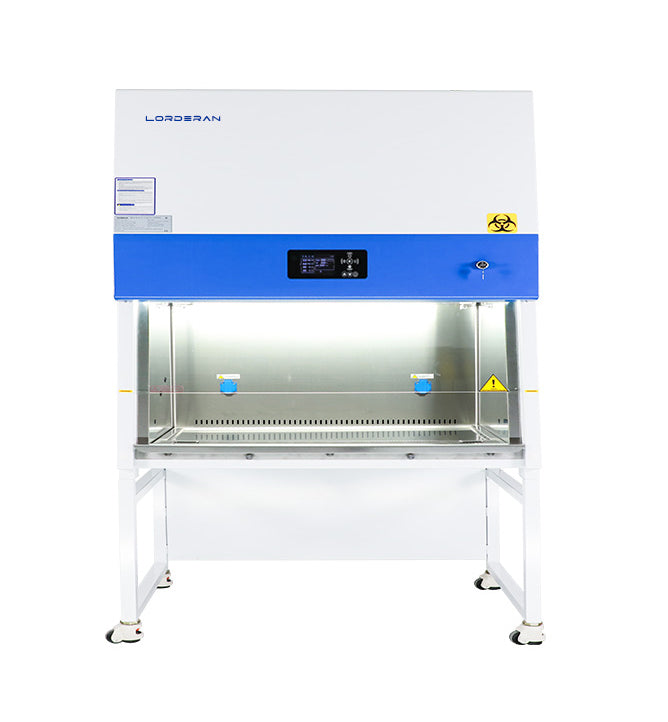

LORDERAN Class II A2 biological safety cabinet

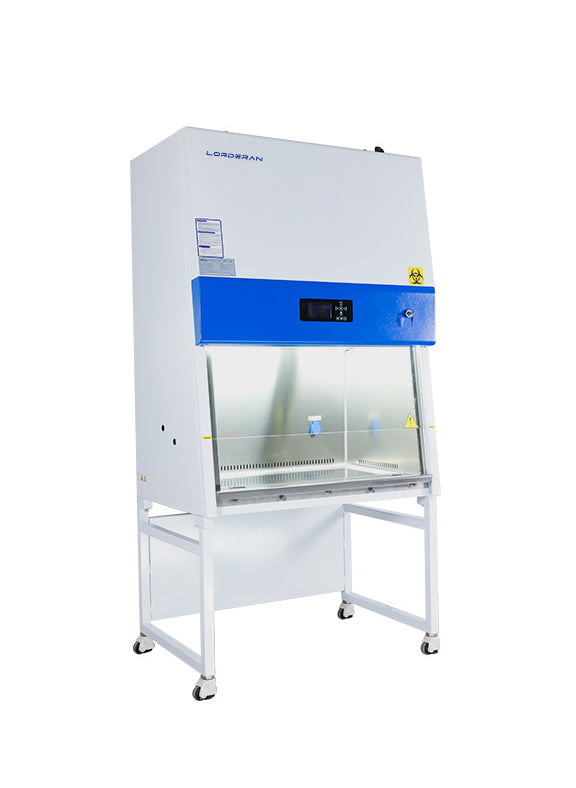

Class II A2 biological safety cabinet – view 2 of 7

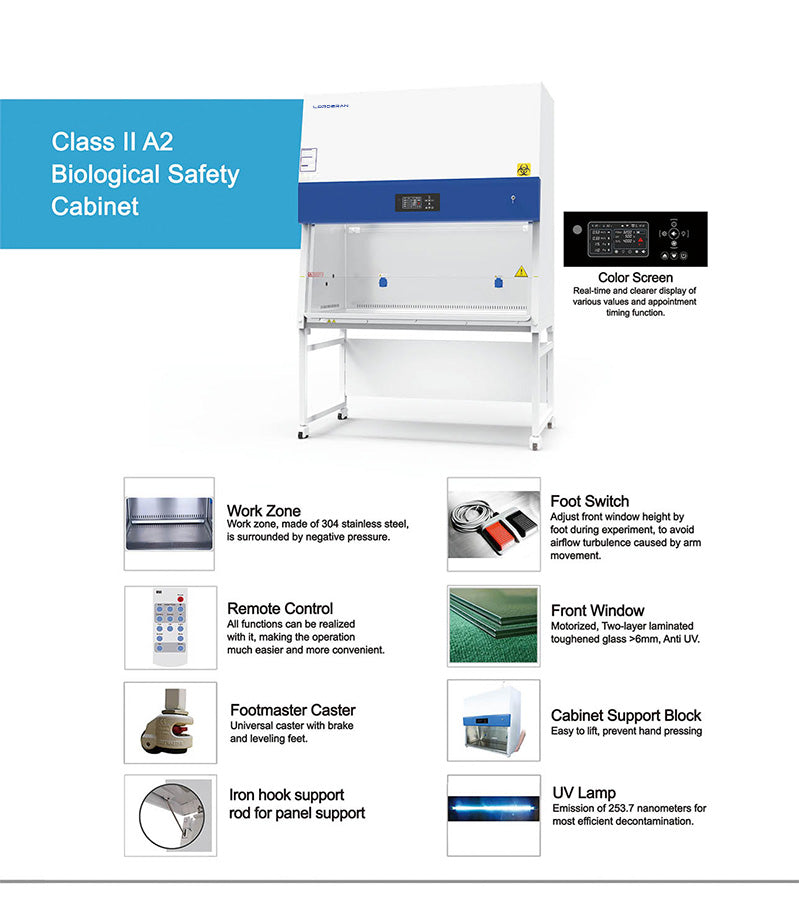

Class II A2 biological safety cabinet – view 3 of 7

Class II biological safety cabinet – ULPA filter

Class II biological safety cabinet – detail view

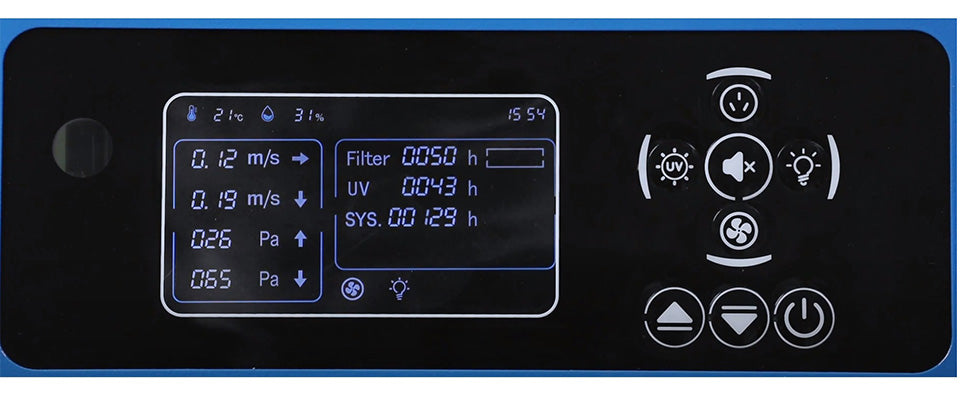

Class II A2 biological safety cabinet – touch-screen control panel

1 / 7

Biological Safety Cabinet

LORDERAN Class II A2 Biological Safety Cabinet with Motorized Front Window, 99.9995% Efficient ULPA Filter Biosafety Hood

SKU: 1100IIA2-X-110
Availability: In stock
Brand: LORDERAN

Size · 3 ft

Power · 110V

A Class II A2 biological safety cabinet that protects three things at once: you, your sample and the lab. Room air is drawn in at the front at 0.53 m/s, ULPA-filtered air falls over the work at 0.33 m/s, and 30% leaves through a second ULPA filter. Four widths from 3 ft to 5.3 ft, a motorized front window and a 3-year warranty.

Class II A2ULPA filtrationMotorized window3-year warranty

0.53 m/sinflow velocity

0.33 m/sdownflow velocity

99.9995%ULPA at 0.12 μm

70 / 30% recirculated / exhausted

3 ft–5.3 ftfour widths

Pharmaceutical developmentClinical researchMicrobiology labsCell culturePharmacy compounding

Specifications Choose a size A2 or B2?FAQ Download catalog

3-year warrantyMajor defects: full refund or replacement.

Free shipping, DDPDuties paid, no surprise import charges.

30-day money backReturn most new, unopened items.

110 V or 220 VChoose the supply that matches your lab.

CATALOG · PDFA2 Biological Safety Cabinet CatalogEvery model, specification and option in one document to share with your team or purchasing office.Download catalog

Three protections in one airflow

Inflow at the front shields you. ULPA-filtered downflow keeps the sample clean. The 30% that leaves passes an exhaust ULPA filter, so the lab stays clean too, with no duct required.

Inflow and downflow are monitored in real time by an airflow sensor.
Alarms sound for abnormal airflow, filter change and an unsafe window height.
Interlocks stop the UV lamp while the window is open or the LED lamp is on.
Filter life is tracked by pressure sensors.

ISO Class 3work zone with ULPA

200 mmtested safe opening

480 mmmaximum opening

≤67 dB(A)noise

Specifications

Models 1100IIA2-X, 1300IIA2-X, 1500IIA2-X and 1800IIA2-X, each available in 110 V and 220 V versions.

Download the full catalog (PDF)

Differs between models

Model	1100IIA2-X	1300IIA2-X	1500IIA2-X	1800IIA2-X
Dimensions
External Dims(WDH)	11007552200mm	13007552200mm	15007552200mm	18007552200mm
Internal Dims(WDH)	940600660mm	1150600660mm	1350600660mm	1625600660mm
Tested Opening (Safety Height)	200mm(8')
Max Opening	480mm (19‘')
Gross Weight	220kg	280Kg	316Kg	366Kg
Package Size(WDH)	122010001820mm	146010001820mm	163010001820mm	190010001820mm
Airflow and filtration
CFM	360m³/h	440m³/h	520m³/h	620m³/h
Inflow Velocity	0.53±0.025 m/s
Down Flow Velocity	0.33±0.025 m/s
Airflow System	70% air recirculation, 30% air exhaust
ULPA Filter	2*ULPA Filter
Cabinet and electrical
Front Window	Motorized, Anti UV
Noise	≤67dB(A)
Consumption	600W	800W	1300W	1300W
Socket	Two, total load: 500W
Standard Accessory	LED lamp2, UV lamp2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets*2

Choose a size

All widths share the same airflow, filters and controls. Front elevations drawn to the same scale.

Built for safe, comfortable daily work

The features you use every session, designed to keep the cabinet safe and simple to run.

ULPA filtration

Two ULPA filters at 99.9995% for 0.12 μm particles: about 10 times the efficiency of HEPA, for an ISO Class 3 work zone.

Real-time display

Filter life, fan run time and UV lamp run time, with an alarm below 10% remaining filter life.

Motorized front window

Raise and lower the sash with one hand, and clean the upper glass easily.

Time reserve

Schedule start-up and sterilizing so you skip about 30 minutes of waiting before and after work.

Audible and visual alarms

Warnings for abnormal airflow, filter change and an unsafe front window height.

Safety interlocks

UV lamp with front window, UV lamp with LED lamp, and blower with front window.

Remote control

Run the main functions from up to 6 meters away.

Ergonomic design

10° inclined viewing angle, raised arm rest and an anti-leakage work surface.

What's in the box

Delivered ready to work, with the accessories below as standard.

LED lamp*2UV lamp*2Base standRemote controlFoot switchDrain valveWaterproof sockets*2

Which biosafety cabinet is right for you?

Every LORDERAN Class II cabinet protects the operator, the sample and the environment. Choose by airflow type, size and controller.

Type

Class II A2This product

Class II B2

Air recirculated

70%

Air exhausted

30%, through an ULPA filter

100%, through a dedicated duct

Exhaust connection

Not required (ductless)

Exhaust duct to outside

Typical work

Biological work without volatile or toxic chemicals or radionuclides

Biological work that also involves volatile toxic chemicals or radionuclides

Protects

Operator, sample and environment

Benchtop A22 ft benchtop, standard controllerView model →Benchtop A2 Pro2 ft benchtop, 7-inch touch screenView model →Class II A23 to 5.3 ft, on base standYou are here Class II A2 Pro3 to 5.6 ft, 7-inch touch screenView model →Class II B23 to 5.5 ft, 100% exhaustView model →Class II B2 Pro3 to 5.2 ft, touch screen, 100% exhaustView model →

Questions buyers ask

Straight answers before you order.

Do I need to connect a duct?

No. A Class II A2 cabinet recirculates 70% of the air and discharges 30% through an ULPA exhaust filter, so it can run without a duct.

When should I choose a B2 cabinet instead?

If your biological work also involves volatile toxic chemicals or radionuclides, choose a Class II B2 total-exhaust cabinet, which recirculates no air.

Which voltage should I order?

Every model is offered in 110 V and 220 V versions. Choose the one that matches the sockets in your lab.

How do I know when the filter needs changing?

The controller tracks filter life and warns you with an audible and visual alarm when the filter needs to be changed.

What does the warranty cover?

The cabinet has a 3-year warranty. Major defects under warranty are covered by a full refund or replacement, and new, unopened items can be returned within 30 days.
