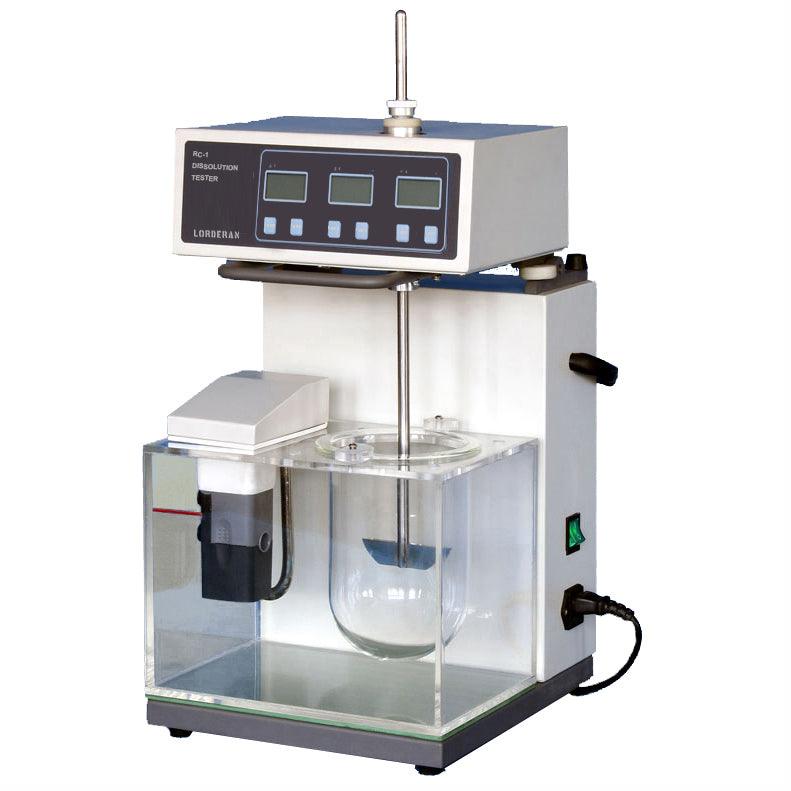

LORDERAN manual dissolution tester, model RC-1

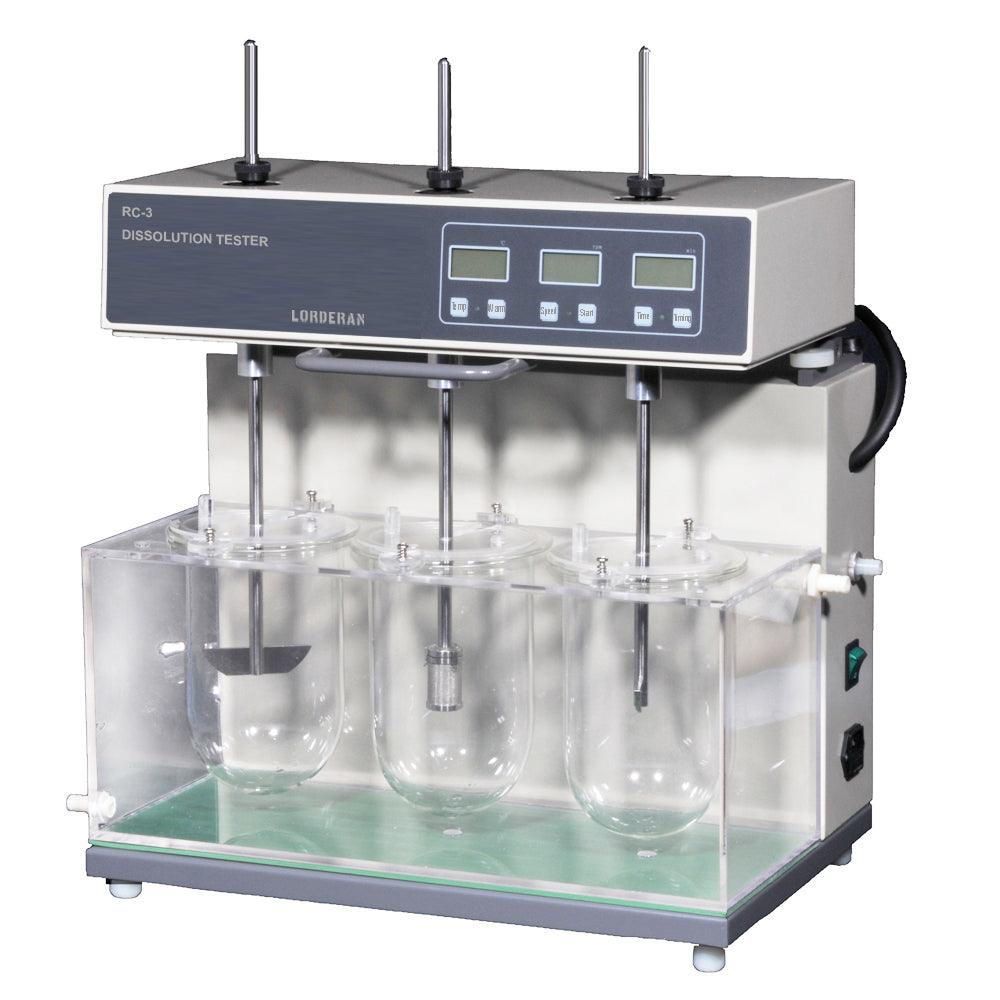

Manual dissolution tester, model RC-3
Manual dissolution tester – view 3 of 6

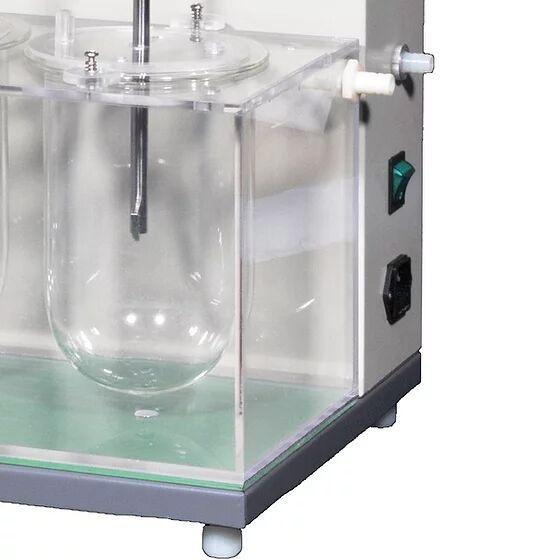

Manual dissolution tester – view 4 of 6
Manual dissolution tester – view 5 of 6
Manual dissolution tester – view 6 of 6
1 / 6
DISSOLUTION TESTER

LORDERAN [1/3] Vessel Manual Dissolution Tester, USP Compliant Tablet Dissolution Apparatus for Pharmaceutical Labs

SKU
RC-1
Availability
In stock
Brand
LORDERAN
Model · RC-1

A compact dissolution tester with one or three vessels, for formulation work and small QC labs. A microprocessor controls temperature, speed and time; a magnetically driven water circulation heats the bath evenly; basket and paddle units are imported SUS316L. The head turns over for easy vessel access.

1 or 3 stationsBasket + paddleSUS316LTurn-over headUSP / EP
37.0 °C · 50 rpmT1 15 min T2 30 min±0.3 °C20–200 rpmBasket + paddle
1–3–6testing stations
20–200 rpmspeed, ±2 rpm
±0.3 °Ctemperature stability
5–900 minnine preset time points
SUS316Lbasket and paddle
Pharmaceutical QCR&D formulationGeneric drug developmentUniversitiesNutraceuticals
How it worksSpecificationsCompare seriesFAQ
WarrantyMajor defects: full refund or replacement.
Free shipping, DDPDuties paid, no surprise import charges.
30-day money backReturn most new, unopened items.
110 V or 220 V220 V / 50 Hz or 110 V / 60 Hz.

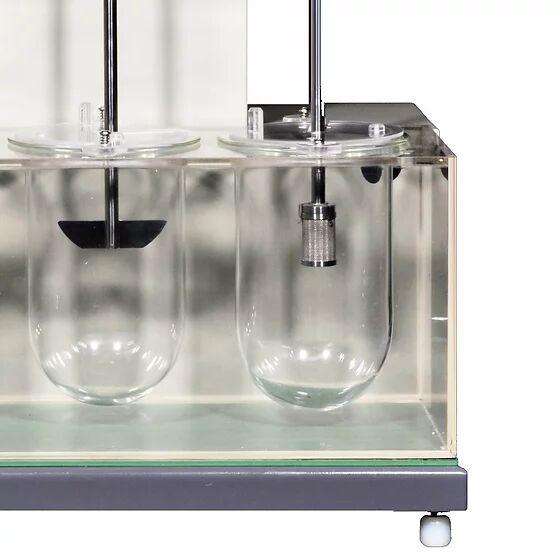

Basket or paddle, nine points to a profile

Each vessel sits in a water bath heated evenly by magnetically driven circulation. Tablets dissolve under a rotating basket or paddle, and you sample at up to nine preset times to build the dissolution profile.

BasketSUS316LPaddleSUS316LWater bath, Rt to 45 °C, ±0.3 °C25%50%75%100%T1T2T3T4T5T6T7T8T9Nine preset time points, 5 to 900 min, with a beep at each% dissolved
±0.5 mmpaddle radial run-out
±1.0 mmbasket radial run-out
Rt–45 °Cbath temperature
MPUtemperature, speed, time

Specifications

Models RC-1, RC-3, RC-6 and RC-8. 220 V / 50 Hz or 110 V / 60 Hz.

Differs between models

Model RC-1 RC-3 RC-6 RC-8
Testing
Testing Station 1 3 6 8
Speed Range 20~200 rpm
Speed Accuracy ±2rpm
Temperature Range Rt~45.0°C
Temperature Stability ±0.3°C
Preset Timing Nine Points 5~900 min
Time Accuracy ±0.5 mm
Paddle Radial Run-Out ±0.5 mm
Basket Radial Run-Out ±1.0 mm
Instrument
Power Supply 220V/ 50Hz, 110V/ 60Hz
Power 600W 600W 1200W 1200W
Dimension 260×300×480 mm 510×300×480 mm 960×320×480 mm 960×440×480 mm

Designed for reproducible results

Stable temperature, true rotation and simple operation.

Even bath heating

Magnetically driven water circulation brings every vessel to the same temperature.

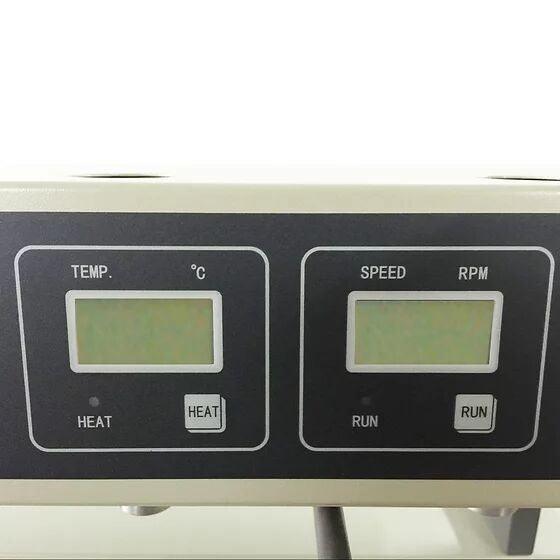

Microprocessor control

Temperature, speed and time preset at any time; preset and live values alternate on screen.

Nine time points

Preset up to nine sampling times; the tester beeps and moves to the next.

SUS316L basket and paddle

Imported stainless steel for corrosion resistance and accuracy.

Turn-over head

The head turns over smoothly for vessel access and cleaning.

Auto-test, diagnose, alarm

The tester checks itself and warns of faults.

Small footprint

RC-1 is just 260 × 300 mm; RC-3 is 510 × 300 mm.

600 W

Low power for a single or triple station.

Explore the LORDERAN tablet testing range

Hardness, friability, disintegration and dissolution, as single instruments or combined.

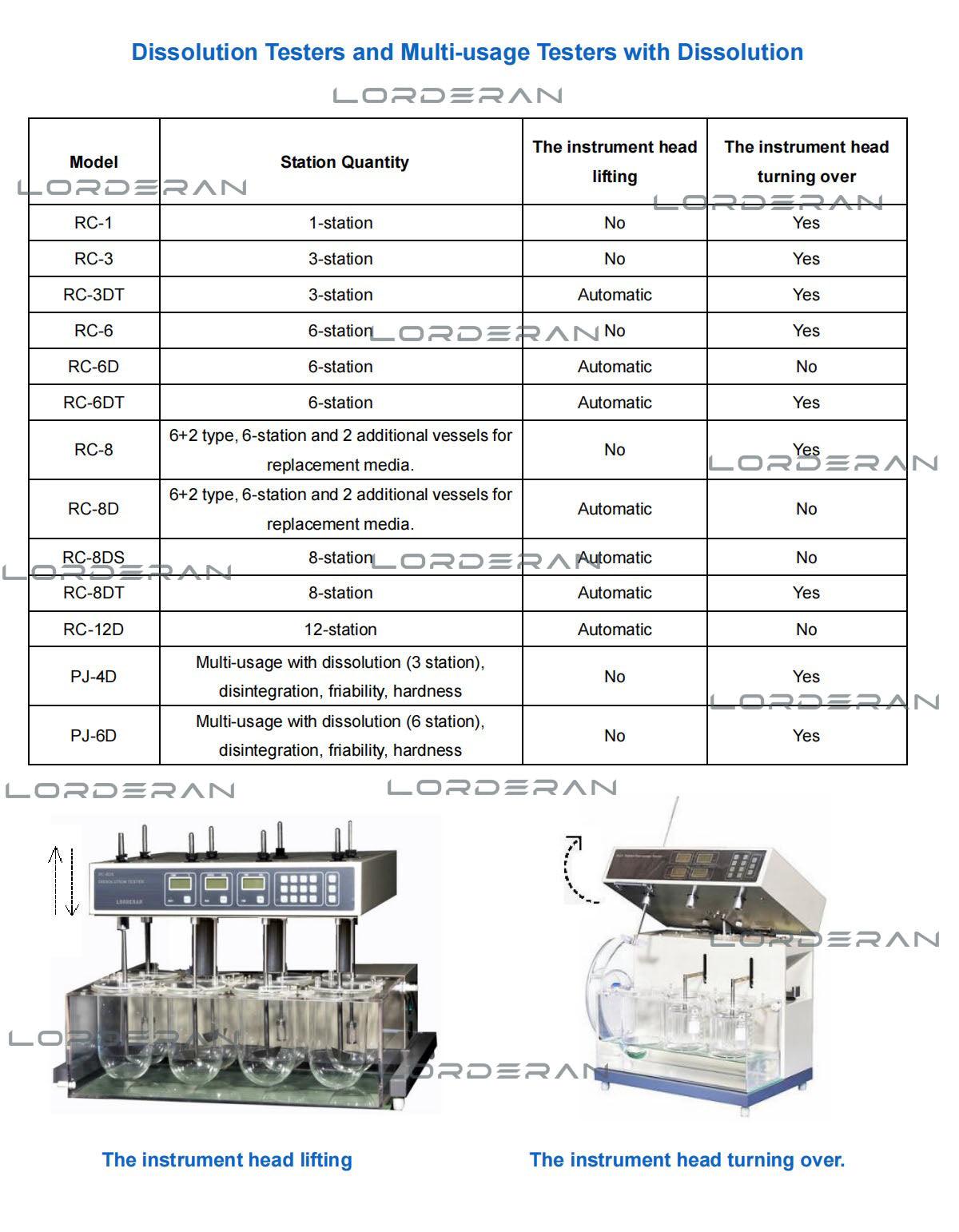

Series
RC-1 / RC-3This product
RC-6 / RC-8
RC-D series
RC-DT series
Head
Turn over by hand
Turn over by hand
Automatic lifting
Automatic lifting, turn over by hand
Stations
1 or 3
6 (RC-8: 6 + 2 media)
6, 8 or 12
3, 6 or 8
Standards stated
USP, EP
ChP 2020 parameters
USP, EP; ChP 2020 parameters
USP, EP, ChP

Hardness testersYD-1 manual, YD-2 and YD-3 automaticView model →Friability testersCS-4, CS-2, CS-3 and CS-1View model →Disintegration testersBJ-1, BJ-2 and BJ-3View model →Dissolution testersManual, auto-lift and turn-over seriesView model →2-in-1 hardness + friabilityPJ-2DView model →4-in-1 tablet testerPJ-4D and PJ-6DView model →

Questions buyers ask

Straight answers before you order.

Basket or paddle?

Both are included in the design: basket units and paddle units in imported SUS316L. Use the method your monograph specifies.

How many sampling times can I preset?

Nine, from 5 to 900 minutes. The tester beeps at each point and moves on to the next.

How stable is the temperature?

The bath runs from room temperature to 45 °C with ±0.3 °C stability, heated by magnetically driven water circulation.

Which voltage?

220 V / 50 Hz or 110 V / 60 Hz.
