Uncompromised Stability, Whispers Quiet
LORDERAN Max 3-Tier Stackable Incubated and Refrigerated Shaker is a high-performance, space-optimized laboratory platform engineered specifically for high-throughput life science research and bioprocess development (PD).
Sleek, Insulated, Silent

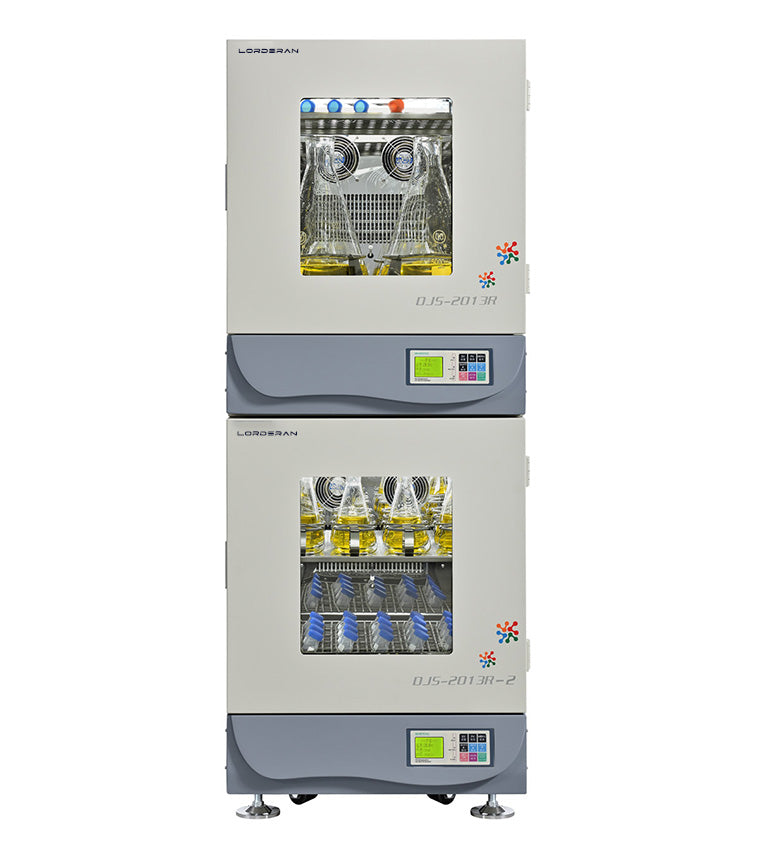

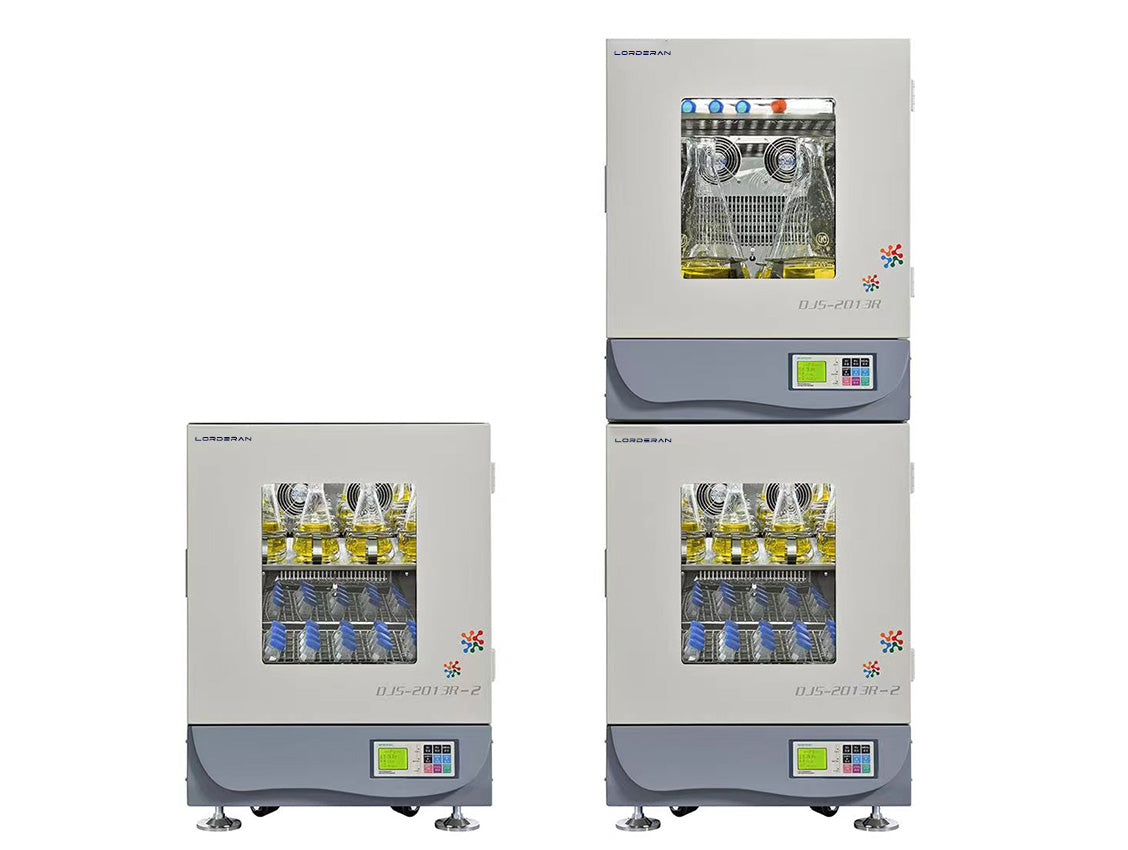

- Max 3-Tier Vertical Stacking: Designed to be stacked 2 to 3 units high on the floor without compromising performance, maximizing high-throughput capability within a minimal footprint.
- Ergonomic Access: Features a drop-down door mechanism combined with a smooth pull-out tray for effortless loading and unloading of culture vessels.
- Intuitive Touch Control: Equipped with a 7-inch color touchscreen display and USB data export interface (optional micro-printer available).
- Sanitary 304 Stainless Steel Interior: Crafted from 304 mirror-finish stainless steel with smooth arc-corner edges for effortless cleaning and contamination prevention.
- Precision Single-Axis Drive: Advanced single-axis balanced transmission paired with a high-efficiency variable-frequency motor ensures ultra-low noise, minimal vibration, and long-term maintenance-free operation.
- Soft-Start Acceleration Control: Engineered with a controlled acceleration circuit that guarantees a smooth startup sequence, preventing sample splashing and protecting delicate cells.
- Comprehensive Safety & Recovery: Features encrypted parameter locking, auto-resume capability following power outages, and active audio-visual alarms that automatically disconnect power during over-temperature or motor overheating events.
4°C - 60°C Refrigerated & Heated
Where laboratory precision meets modern design: a powder-coated exterior and dual-pane tempered glass viewport unite sleek form with uncompromising insulation and noise control.
Broad Temperature Range
Delivers precise temperature management from 4°C to 60°C, maintaining tight temperature stability within ±0.1°C.
Low-Temperature Refrigeration
Powered by a CFC-free compressor system for low-temperature recombinant protein expression, sample preservation, or enzyme kinetics studies, effectively preventing target protein degradation.
High-Temperature Incubation
Accommodates thermophilic bacterial culture, nucleic acid hybridization, and genetic engineering vector construction.
Chamber Air Circulation & Uniformity
3D air duct design guarantees consistent temperature distribution throughout the chamber, preventing growth rate discrepancies caused by localized thermal gradients.
Single-Axis Drive
Driven by brushless DC (BLDC) motors and heavy-duty bearings that suppress mechanical resonance and friction noise, while preventing motor heat from diffusing into the chamber and affecting thermal control.
5-Point Dynamic Balance Drive
A central eccentric shaft combined with four perimeter support points forms a parallelogram dynamic balancing system. Ensures smooth, ultra-quiet operation even under uneven or asymmetric vessel loading.
Wear-Free Single-Axis Drive
Drive mechanism eliminates mechanical friction and belt wear, lowering energy consumption, preventing deviations, and delivering zero-noise performance over extended continuous runs.
Hermetically Sealed Drive Housing
Designed to cleanroom standards, all mechanical drive assemblies are fully enclosed to isolate motors and electrical components from humidity and biological contamination.
Controllable Servo Motor
High-torque, low-noise servo system supports bidirectional (forward/reverse) rotation with exact speed regulation.
Mobility & Leveling
Equipped with heavy-duty castors for easy relocation and adjustable leveling feet for operational stability.
Specifications
180L
165L
84L
122L
Shaking Mode
Orbital
Orbital & Reciprocating
Orbital & Reciprocating
Orbital & Reciprocating
SKU
2012R
2013R
2019R
2020R
Speed Range
0–300 rpm
0–300 rpm
0–300 rpm
0–300 rpm
Speed Accuracy
±1 rpm
±1 rpm
±1 rpm
±1 rpm
Orbit / Stroke
Dia. 25mm
Dia. 25mm
Dia. 25mm
Dia. 25mm
Programming Function
Programing of repetition, steps and eight curves settings
Programing of repetition, steps and eight curves settings
Programing of repetition, steps and eight curves settings
Programing of repetition, steps and eight curves settings
Timing Range
0 – 999h59mins / continuous
0 – 999h59mins / continuous
0 – 999h59mins / continuous
0 – 999h59mins / continuous
Temperature Range
4°C-60°C (RT-18°C, min 4°C)
4°C-60°C (RT-18°C, min 4°C)
4°C-60°C (RT-18°C, min 4°C)
4°C-60°C (RT-18°C, min 4°C)
Temperature Accuracy
±0.1°C (Constant temperature)
±0.1°C (Constant temperature)
±0.1°C (Constant temperature)
±0.1°C (Constant temperature)
Temperature Uniformity
±0.5°C at 37°C
±0.5°C at 37°C
±0.5°C at 37°C
±0.5°C at 37°C
Size of shaking Plate
780×480mm
480×440mm
420×400mm
542×445mm
Inner Size
850×560×395mm
560x520x565mm
495×455×370mm
610×505×400mm
External Size
1150×800×640mm
650×845×810mm
580×740×580mm
910×740×640mm
Net Weight
320kg
205kg
150kg
220kg
Max Power
1720W
1530W
1030W
1530W
Rated current
7.8A(220V), 16A(110V)
7A(220V), 14A(110V)
4.7A(220V), 10A(110V)
7A(220V), 14A(110V)
Power Supply
AC 220V, 50/60 Hz; 110V, 60Hz
AC 220V, 50/60 Hz; 110V, 60Hz (110V External transformer)
AC 220V, 50/60 Hz; 110V, 60Hz (110V External transformer)
AC 220V, 50/60 Hz; 110V, 60Hz
180L
Shaking Mode
Orbital
SKU
2012R
Speed Range
0–300 rpm
Speed Accuracy
±1 rpm
Orbit / Stroke
Dia. 25mm
Programming Function
Programing of repetition, steps and eight curves settings
Timing Range
0 – 999h59mins / continuous
Temperature Range
4°C-60°C (RT-18°C, min 4°C)
Temperature Accuracy
±0.1°C (Constant temperature)
Temperature Uniformity
±0.5°C at 37°C
Size of shaking Plate
780×480mm
Inner Size
850×560×395mm
External Size
1150×800×640mm
Net Weight
320kg
Max Power
1720W
Rated current
7.8A(220V), 16A(110V)
Power Supply
AC 220V, 50/60 Hz; 110V, 60Hz
165L
Shaking Mode
Orbital & Reciprocating
SKU
2013R
Speed Range
0–300 rpm
Speed Accuracy
±1 rpm
Orbit / Stroke
Dia. 25mm
Programming Function
Programing of repetition, steps and eight curves settings
Timing Range
0 – 999h59mins / continuous
Temperature Range
4°C-60°C (RT-18°C, min 4°C)
Temperature Accuracy
±0.1°C (Constant temperature)
Temperature Uniformity
±0.5°C at 37°C
Size of shaking Plate
480×440mm
Inner Size
560x520x565mm
External Size
650×845×810mm
Net Weight
205kg
Max Power
1530W
Rated current
7A(220V), 14A(110V)
Power Supply
AC 220V, 50/60 Hz; 110V, 60Hz (110V External transformer)
84L
Shaking Mode
Orbital & Reciprocating
SKU
2019R
Speed Range
0–300 rpm
Speed Accuracy
±1 rpm
Orbit / Stroke
Dia. 25mm
Programming Function
Programing of repetition, steps and eight curves settings
Timing Range
0 – 999h59mins / continuous
Temperature Range
4°C-60°C (RT-18°C, min 4°C)
Temperature Accuracy
±0.1°C (Constant temperature)
Temperature Uniformity
±0.5°C at 37°C
Size of shaking Plate
420×400mm
Inner Size
495×455×370mm
External Size
580×740×580mm
Net Weight
150kg
Max Power
1030W
Rated current
4.7A(220V), 10A(110V)
Power Supply
AC 220V, 50/60 Hz; 110V, 60Hz (110V External transformer)
122L
Shaking Mode
Orbital & Reciprocating
SKU
2020R
Speed Range
0–300 rpm
Speed Accuracy
±1 rpm
Orbit / Stroke
Dia. 25mm
Programming Function
Programing of repetition, steps and eight curves settings
Timing Range
0 – 999h59mins / continuous
Temperature Range
4°C-60°C (RT-18°C, min 4°C)
Temperature Accuracy
±0.1°C (Constant temperature)
Temperature Uniformity
±0.5°C at 37°C
Size of shaking Plate
542×445mm
Inner Size
610×505×400mm
External Size
910×740×640mm
Net Weight
220kg
Max Power
1530W
Rated current
7A(220V), 14A(110V)
Power Supply
AC 220V, 50/60 Hz; 110V, 60Hz
