Steam Sterilizer

LORDERAN 100L/150L Food Steam Autoclave with Air Compressor, Counter-Pressure Food Sterilizer for Retort Pouches, Cans, Jars

SKU
100F
Availability
In stock
Brand
LORDERAN
Capacity · 100L

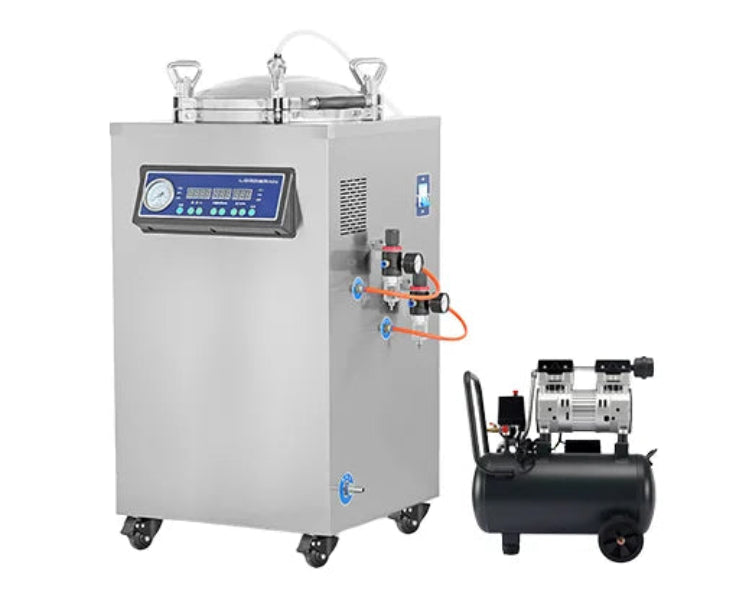

A counter-pressure food autoclave for retort pouches, cans, jars, trays and bottles. Filtered compressed air enters with the steam and keeps the pressure outside each container at or above the pressure inside, so packs do not burst or deform during heating and cooling. Air compressor included, 100 L or 150 L.

Counter-pressureAir compressor includedPouches, cans, jars220 V1-year warranty
LORDERAN121.0°CAIRCounter-pressure134 °C max100 · 150 L
115–134 °Csterilizing range
0–200 kPapressure setting
Standardair compressor, 60 dB
1–999 minsterilization timer
100 · 150 Ltwo sizes
Retort pouchesCanned foodsBottled drinksSauces and jamsPet food
How it worksSpecificationsApplicationsFAQ
1-year warrantyMajor defects: full refund or replacement.
Free shipping, DDPDuties paid, no surprise import charges.
30-day money backReturn most new, unopened items.
220 V single phaseRemovable NEMA 10-50P plug.

Counter-pressure: why your packs stay intact

At high temperature the air and water inside a sealed pack expand. Compressed air keeps the chamber pressure equal to, or slightly above, the pressure inside, in both phases of the cycle.

≥0.3 MPacompressed air supply
≥0.3 MPawater source
≤0.5 °Cheat average
60 dBair compressor

Specifications

Models 100F and 150F, 220 V single phase.

Differs between models

Model 100L 150L
Model
SKU 100F 150F
Performance
Working pressure 33psi (0.23mpa)
Max temperature 134℃
Temp. setting range 115~134℃ (238~273°F)
Heat average ≤0.5℃
Sterilization timer range 1~999mins
Pressure setting range 0~200kPa
Counter-pressure supply
Water source pressure ≥0.3MPa
Compressed air pressure ≥0.3MPa
Air compressor Standard
Air compressor noise level 60dB
Chamber and loading
Inner chamber capacity φ450x620mm φ500x747mm
Baskets quantity 2*(φ425x275mm) 2*(φ475x365mm)
Operation
Exhaust method Automatic exhaust
Drainage Manual drainage
Electrical
Power 4.5kw, single phase, 220V, 20amps 6.5kw, single phase, 220V, 30amps
Plug type Three-pronged, NEMA 10-50P (Removable)
Dimensions and weight
Overall dimensions 650x617x1173mm 716x649x1293mm
G.W / N.W 105/80kg 122/92kg

Choose a size

Drawn to the same scale; the dashed outline is the inner chamber.

100L650 × 617 × 1173 mmchamber φ450 × 620150L716 × 649 × 1293 mmchamber φ500 × 747Dashed outline: inner chamber, drawn to the same scale

Built for packaged food

From product development to small-batch production.

Canned foods

Meats, fish, vegetables, soups and similar products.

Bottled and cartoned drinks

Juices, tea drinks, sports drinks, bottled water, coffee and cartoned dairy.

Flexible pouches

Ready-to-eat meals, sauces, convenience foods and pet food.

Semi-solid foods

Sauces, jams, ketchup and high-viscosity supplements.

Find the right LORDERAN autoclave

Compare the range by capacity, exhaust and special functions.

Vertical autoclave, bolt lid35 to 150 L, automatic exhaustView model →Vertical autoclave with drying35 to 100 L, internal exhaust, dryingView model →Autoclave with condensate bottle35 to 100 L, solid, liquid and agar modesView model →Food autoclave100 and 150 L, counter-pressureYou are here

Questions buyers ask

Straight answers before you order.

Why do I need counter-pressure?

Sealed pouches, trays and bottles build pressure inside as they heat. Without matching pressure outside they can burst or deform. Compressed air prevents that.

Is the air compressor included?

Yes, the air compressor is standard. It runs at about 60 dB.

What utilities do I need?

A water source and compressed air of at least 0.3 MPa, and a 220 V single-phase supply: 20 A for the 100 L, 30 A for the 150 L.

How is the product cooled?

Steam stops and water spray and jacket air cooling begin, while compressed air keeps the chamber pressure up.

What does the warranty cover?

A 1-year warranty. Major defects under warranty are covered by a full refund or replacement.
