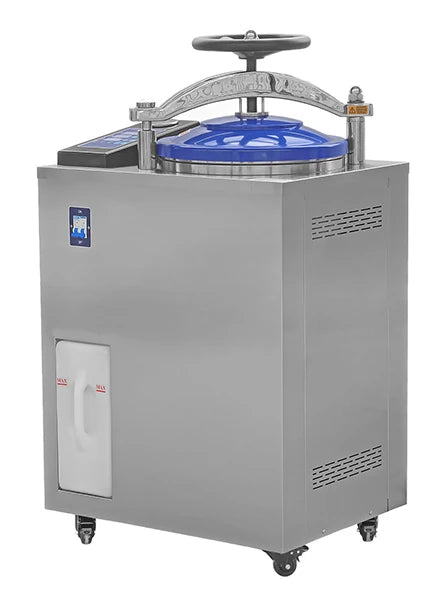

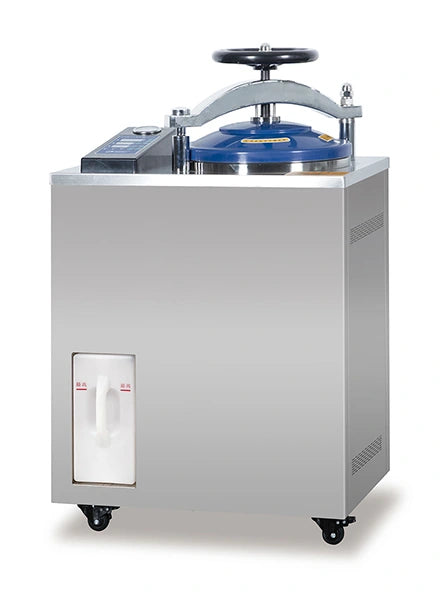

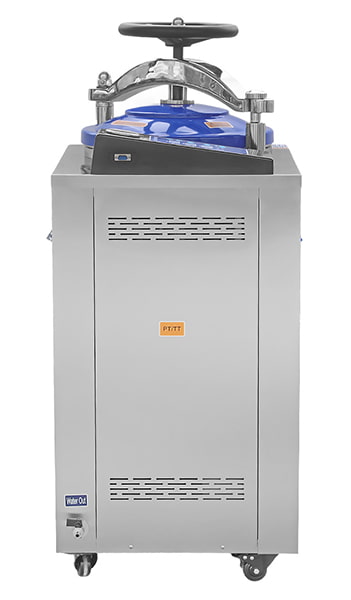

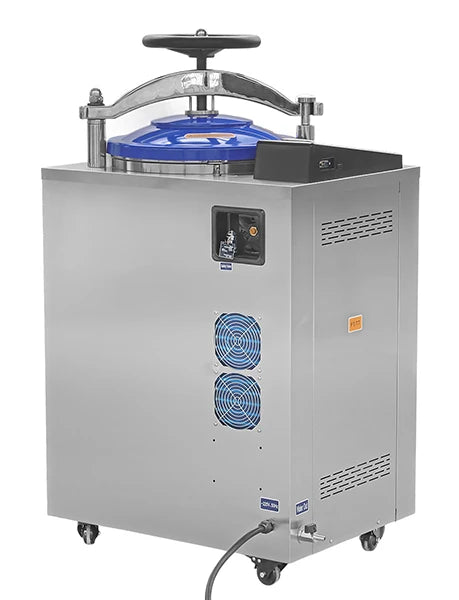

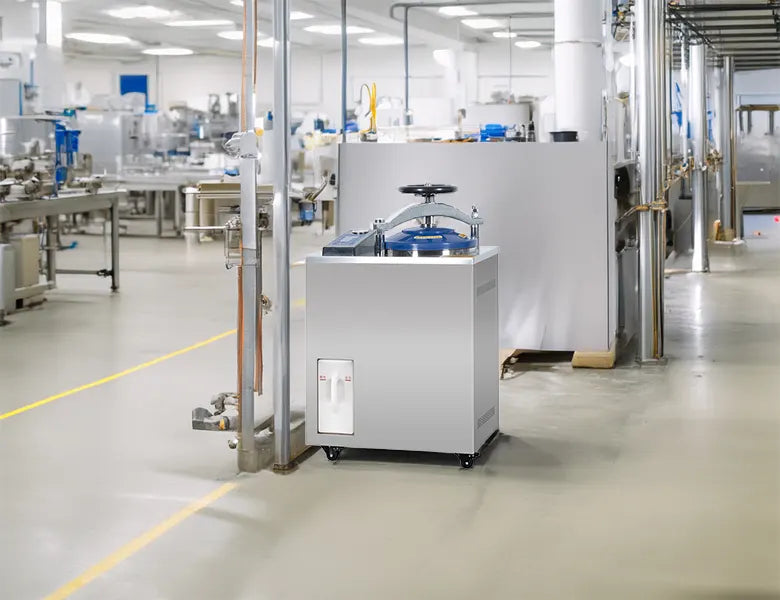

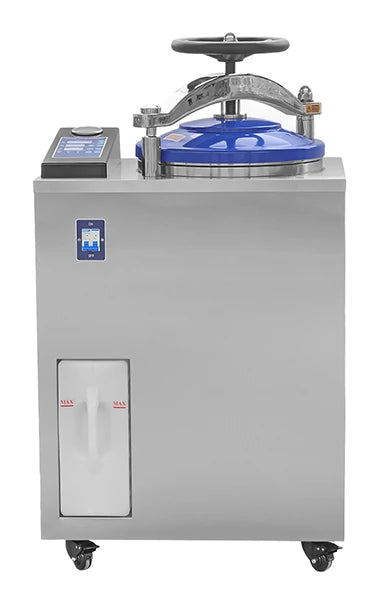

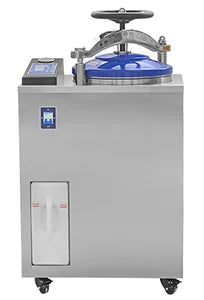

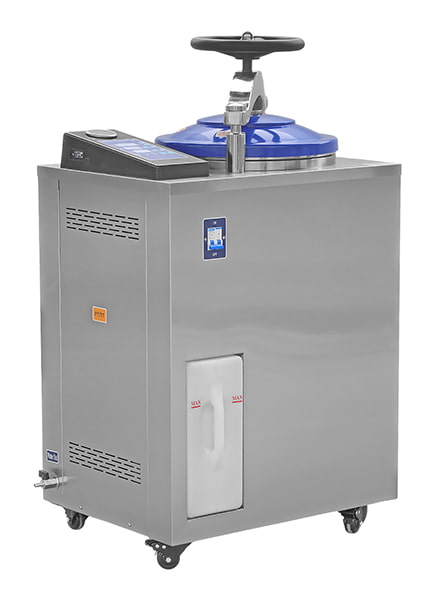

Vertical Sterilizer (With Drying Process)
Designed to be reliable with fully stainless steel, Easy to operate.

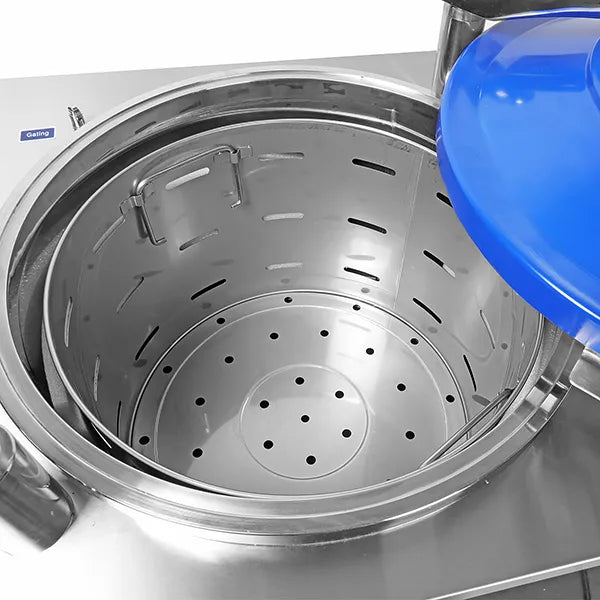

With two stainless steel sterilizing baskets.
Automatically controlled by computer, With perfect drying function.

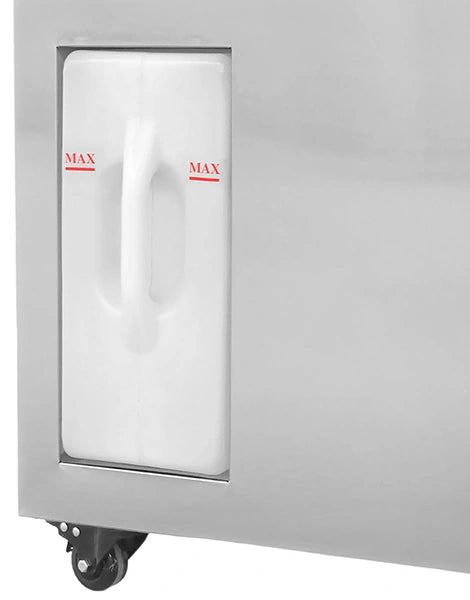

Steam water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
- Fully stainless steel structure.

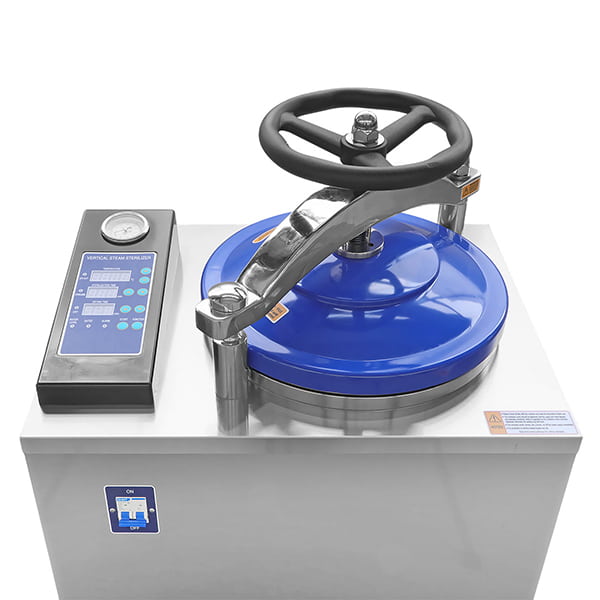

- Hand wheel type of quick open door structure.
- Door safety lock system.
- Automatically controlled by computer.
- LCD display of working status, touch type key.
- Over temperature &over pressure auto protection.
- Steam water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.
- Self-inflating type seal.
- Safe protection of water lacking.
- With perfect drying function.
- Automatically shut off with beep reminding after sterilization.
- With two stainless steel sterilizing baskets.
| Model | LS-35HG | LS-50HG | LS-75HG | LS-100HG |

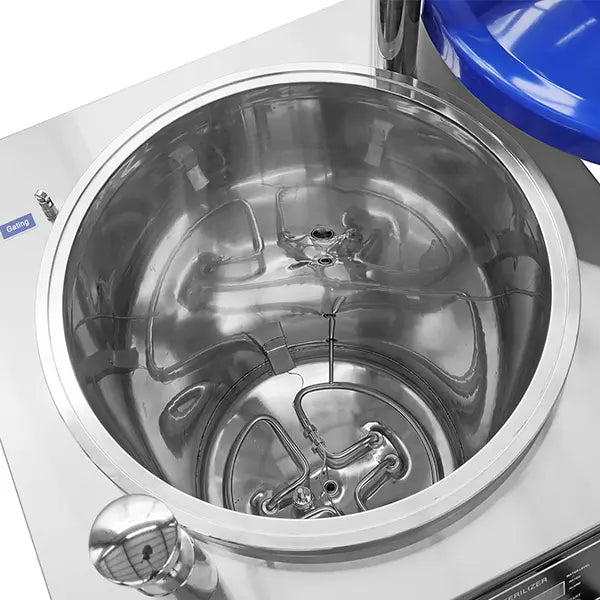

| Chamber volume | 35L / φ318×450mm | 50L / φ340×550mm | 75L / φ400×600mm | 100L / φ440×650mm |
| Working pressure | 0.22Mpa | 0.22Mpa | 0.22Mpa | 0.22Mpa |
| Working temperature | 134℃ | 134℃ | 134℃ | 134℃ |
| Max. working pressure | 0.23Mpa | 0.23Mpa | 0.23Mpa | 0.23Mpa |
| Heat average | ≤±1℃ | ≤±1℃ | ≤±1℃ | ≤±1℃ |
| Timer range | 0-99min/0-99hour59min | 0-99min/0-99hour59min | 0-99min/0-99hour59min | 0-99min/0-99hour59min |
| Temperature range | 105-134℃ | 105-134℃ | 105-134℃ | 105-134℃ |
| Power | 2.5KW/AC220V 50HZ | 3KW/AC220V 50HZ | 4.5KW/AC220V 50HZ | 4.5KW/AC220V 50HZ |
| External Size(mm) | 680×410×1040 | 710×460×1150 | 780×600×1380 | 820×600×1380 |
| Packing Size (mm) | 710×480×1140 | 750×550×1280 | 780×600×1380 | 820×600×1380 |
| G.W/ N.W | 104/82Kg | 122/98Kg | 146/120Kg | 148/124Kg |
What is vertical sterilizer?
Vertical autoclave, also known as steam sterilizers and top loading sterilizers, is a sterilizing machine that comes in a cylindrical shape. ... This machine works on the principle of high-pressure steam for sterilizing flasks, medical tools, beakers, etc.
What is the difference between vertical and horizontal sterilizer?
A small amount of process water is filled in on an autoclave bottom. In the horizontal autoclave with two baskets 200 liters of water are filled in ~ (in two baskets vertical ~ 2500 liters of water). ... Respectively steam consumption in horizontal autoclaves is lower, than in vertical autoclaves.
What is the minimum temperature for sterilization?
121°C
Sterilization is achieved within a minimum of 15 min at 121°C (250 °F) or 3 min at 134°C (273°F). Other times and temperatures can achieve the same killing effect (e.g., 121°C for 20 min).
What cannot be sterilized in an sterilizer?
However, if it is placed inside an autoclavable biohazard bag with a steam setting as waste items, then they will melt slightly but not combust to fire or smoke. Biohazard bags inside autoclaves often come with latex or vinyl safety gloves along with paper and plastic culture plates.
What time is the general products to be sterilized?
| Items | Sterilizing time (min) | Pressure (MPa) | Temperature (℃) |
| Rubber | 15 | 0.1~0.11 | 121 |
| Textile | 15~50 | 0.1~0.22 | 121~134 |
| Instrument | 8~40 | 0.1~0.22 | 121~134 |
| Glass ware | 10~40 | 0.1~0.22 | 121~134 |
| Bottled fluid | 20～40 | 0.145 | 121～126 |
