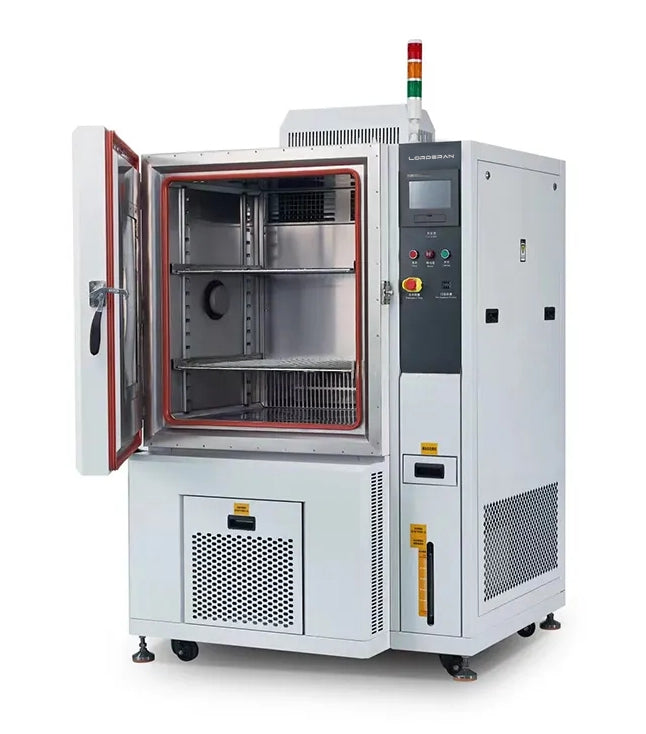

(-40°C to 180°C) Constant Climate Chamber Environmental test chamber

One year warranty. Temperature range -40°C to 180°C, Humidity range: 20 % to 98 % RH, Intuitive touchscreen controller with time-segment and real-time programming, Troubleshooting system with visual and audible alarms, Cooling with compressor cooling unit, USB port for test data output and print. With 100*30 customizable programs and multiple periodic cycles.
SKU: JS4010
Availability: In Stock
$6,999.00
$6,999.00
Model: 100L (220V single phase 22amps)
Subtotal: $6,999.00

Need Formal Quote?




Get your Quote

Free Shipping

Free shipping from China on all orders (Door to Door)

30 Day Money Back Guarantee

If approved, you’ll be automatically refunded on your original payment method.

What DDP Term means

Lorderan paying for all charges including freight, duties, taxes, customs clearance charges up to the customer's door, warehouse or fulfillment center.
(-40°C to 180°C) Constant Climate Chamber Environmental test chamber

(-40°C to 180°C) Constant Climate Chamber Environmental test chamber

$6,999.00

(-40°C to 180°C) Constant Climate Chamber Environmental test chamber

$6,999.00
Model: 100L (220V single phase 22amps)

The Constant Climate Chamber Environmental test chamber, which can detect the heat-resisting, cold-resistant, drying resistant and wet resistance of the equipment under each environment. It is suitable for detecting the quality of electronic, appliance, communication, instrument, vehicle, plastic product, metal, food, chemicals, building materials, medical treatment, spaceflight product, etc.

This Constant Climate Chamber is an alternative to complex individual solutions for cyclical temperature tests.

Reference Standards

GB11158 Specifications for High Temperature Test Chambers GB/T2423.4-2008 Test Methods for Cyclic Damp Heat Tests
GB10589-89 Specifications for Low Temperature Test Chambers GB/T2423.22-2002 Test Methods for Temperature Variations
GB10592-89 Specifications for Low/High Temperature Test Chambers IEC60068-2-1.1990 Test Methods for Low Temperature Test Chambers
GB/T10586-89 Specifications for Thermal-humidity Test Chambers IEC60068-2-2.1974 Test Methods for High Teperature Test Chambers
GB/T2423.1-2008 Test Methods for Low Temperature Test Chambers GJB150.3 High Temperature Tests
GB/T2423.2-2008 Test Methods for High Temperature Test Chambers GJB150.4 Low Temperature Tests
GB/T2423.3-2006 Test Methods for Thermal-humidity Test Chambers GJB150.9 Damp Heat Tests


Structural Features

  • The inner chamber material is made of SUS#304 stainless steel with 1.2mm thickness. Full welding structure, its sealing is very well and it’s not easy to get cracked.
  • The external material is made of cold-rolled plate with 1.5mm thickness, it has gone through brushing, polishing, painting treatment, it's not easy to get scratched.
  • The insulation material is made of polyurethane foam with thickness  of 100mm.
  • The door seal adopts double silicon rubber sealing material.
  • The observation window is 4 layers of tempered glass, the size you can choose by yourself.
  • In addition, in order to prevent frosting on the observation window when running low temperature, we setup a heating wires inside to get it di-frosting.
  • Left sides of chamber are equipped with a diameter 50mm cable port, the silicon plug is high & low temperature resistance.

Refrigeration System

  • Compressors equipped with world famous brand such as Tecumseh (France made), Bitzer or GEA BOCK (Germany made).
  • Shock absorption and noise reduction process,slow down the vibration, protect the compressor.The pipe bending technology: The bending process can minimize the connector point and make refrigerant flow more efficiently.
  • It applies Denmark DANFOSS and Japanese SAGLNOMIYA solenoid valves to improve the overall reliability of the equipment.
  • MP10 module has motor over-heating protection (with LED indicator), exhaust temperature over-heating protection (requires optional temperature monitoring probe and LED indicator), power indicator, alarm function.


Electrical System

  • The overall layout of the circuit cabinet looks very neat and professional. Our circuits are arranged in accordance with UK standards and are equipped with complete circuit diagrams. Each line has a unique code which is clearly defined and easy to locate for troubleshooting.
  • Use electrical components of world famous brands, such as Schneider from France,Carlo Gavazzi from Switzerland,Mitsubishi from Japan,Rainbow from Korea.

Safety features

  • Test sample overtemperature protection function.
  • Circulation motor overload protection function.
  • Compressor overload protection function.
  • Compressor overpressure function.
  • Heater/humidifier air burn protection function.
  • Water shortage protection.
  • Input power supply missing phase, reverse phase protection function.
  • Lighting lamp / wire anti-condensation/no fuse independent protection switch in the secondary circuit.
  • Electric leakage protection.
  • Three color light alarm function.
  • Test sample terminal and equipment chain control protection.
  • Equipment fault shutdown, the cycle fan delay stop turn (delay can be set, 0 to 50min, default 5min).
  • Non-metallic materials such as wire / cable / terminals / insulation materials / sound-absorbing materials (if sometimes) are made of flame retardant materials.


Chamber structure and materials

  1. Heat preservation layer: Polyurethane foaming + high temperature rock wool, the (left, right side) thickness150mm, the (top, bottom side) thickness100mm.
  2. Inner cabin: the inner cabin adopts thickness 1.0mm SUS# 304 heat and cold resistant stainless-steel plate, external chamber adopts 1.0 mm plastic coating or color steel plate. It is fully sealed and welded, no water seepage when high temperature and high humidity, Integrated stamping and forming of humidified water plate.
  3. Doors: electrolytic plate with plastic coating, left single door; size: W 800mm×H 840mm.
  4. Base, bottom plate: base frame is welded with steel plate, and bottom plate is reinforced with 3mm steel plate.
  5. Glass window: 1 piece of 3 layers of hollow tempered glass is installed on door, visible range: W 300mm x H 450mm; With electric heating (automatic regulation) anti-frosting, anti-condensation device.
  6. Lighting: Lamp voltage is AC12V to prevent the risk of tester electric shock once lamp fault; Automatic delay turned off time after opened.
  7. Test hole: 1 piece of φ50mm test hole (located on the left side of chamber, φ100mm test hole and quantity is optional).  FREE charge if need more and bigger test hole.
  8. Pressure balance port: mechanical passive, maintenance-free.

Specifications:

Model GD-JS4010 GD-JS4025 GD-JS4050 GD-JS4100
Volume 100L 225L 500L 1000L
Temperature range(℃) -40~180 -40~180 -40~180 -40~180
Humidity range 20%RH~98%RH
Temperature fluctuation ≤±0.5℃
Humidity fluctuation ≤±2~3%RH
Temperature deviation ±1.0℃
Humidity deviation ±2.0%RH(>75%): ±3.0%RH(≤75%)
Heating-up time 20℃~+180℃ ≤60min
Cooling down time +20℃~-20℃   Cooling down time ≤45min
+20℃~-40℃   Cooling down time≤70min
Inner size(W*D*H) (mm)  500*400*500 600*500*750 800*700*900 1000*1000*1000
External size (W*D*H) (mm) 980*920*1600 1080*1050*1860 1280*1270*2050 1480*1500*2150
Internal material SUS304 Stainless Steel (1.2mm)
Fan Centrifugal fan
Refrigerant  R404A/R134A
Refrigeration method Mechanical compression refrigeration (air cooled)
Display device 7.0 inch Touch Screen
Power Supply AC 220V±10%, 50/60Hz AC 220V±10%, 50/60Hz AC 220V±10%, 50/60Hz 380V/480V, 50/60Hz
Power  4.7kw 5kw 8kw 12kw
Gross Weight 310kg 360kg 450kg 720kg
